Series NO.：WS300A
Terminal Type：Splices
Splice Type：Pigtail Splice
Strip Orientation：Side Feed
Your are here:Home > Products > Terminal & Connector > Crimp Terminals > Splices > WS300A
Series NO.：WS300A
Terminal Type：Splices
Splice Type：Pigtail Splice
Strip Orientation：Side Feed
INQUIRE NOW
| Part NO. | Material | Finish |
Wire Range (AWG) |
Thickness (mm) |
Packaging Quantity (Reel) |
Certified |

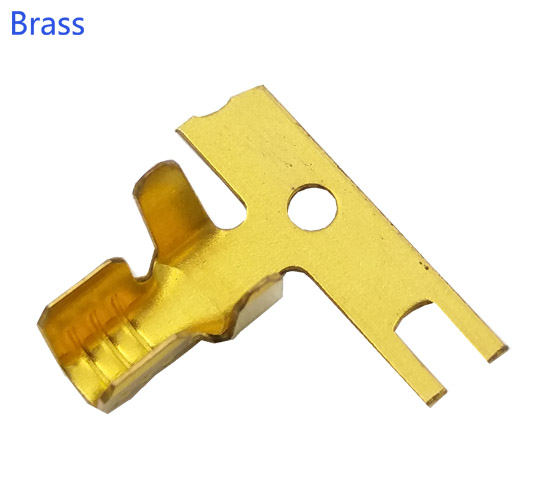

| WS300A001 | Brass | Unplated | 22-18 | 0.3 | 5K | - |
| WS300A001-01 | Brass | Unplated | 22-18 | 0.3 | 5K | - |
| WS300A001-40 | Brass | Unplated | 22-18 | 0.4 | 5K | - |
| WS300A001-L-40 | Brass | Unplated | 18-16 | 0.4 | 5K | - |

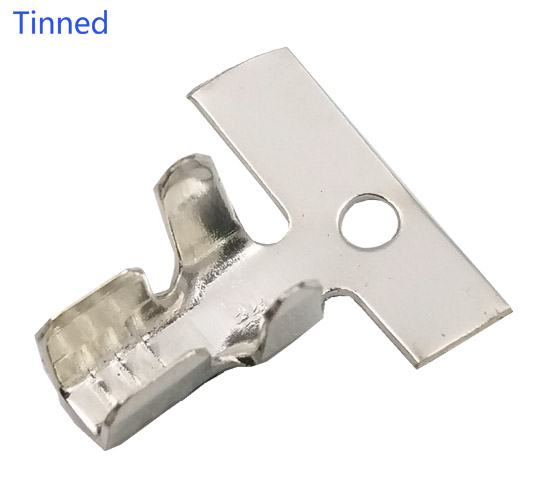

| WS300A002 | Brass | Tinned | 22-18 | 0.3 | 5K | - |
| WS300A002-40 | Brass | Tinned | 22-18 | 0.4 | 5K | - |
| WS300A002-L-40 | Brass | Tinned | 18-16 | 0.4 | 5K | - |

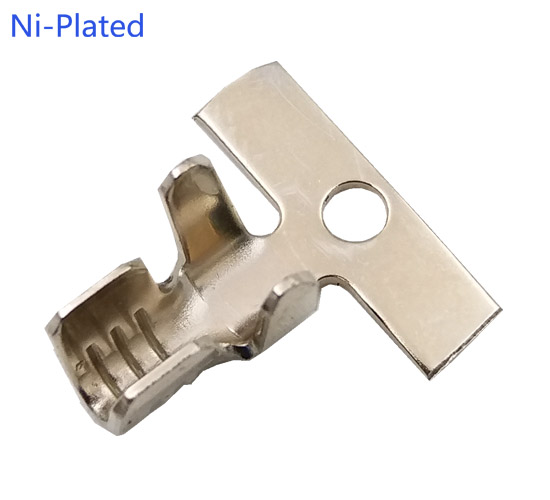

| WS300A003-50 | Steel | Ni-Plated | 22-18 | 0.5 | 5K | - |
| WS300A003-L-40 | Steel | Ni-Plated | 18-16 | 0.4 | 5K | - |
| WS300A003-L-50 | Steel | Ni-Plated | 18-16 | 0.5 | 5K | - |
