Series NO.: PM356
Terminal Type: Pin

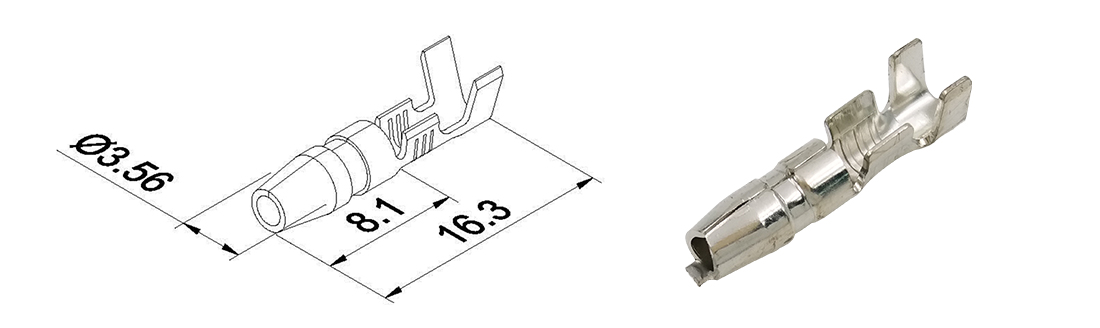

Pin Diameter: 3.56mm
Terminal Orientation: Straight
Your are here:Home > Products > Terminal & Connector > Crimp Terminals > Wire Pins & Receptacle > PM356
Series NO.: PM356
Terminal Type: Pin
Pin Diameter: 3.56mm
Terminal Orientation: Straight
INQUIRE NOW
| Part NO. |
Length (mm) |
Material | Finish | Wire Range | Thickness |
Packaging Quantity (Reel) |
Certified |
| PM3560001 | 8.1 | Brass | Unplated | 18-14 | 0.5 | 10K | - |
| PM3560001-S | 8.1 | Brass | Unplated | 22-18 | 0.5 | 10K | - |

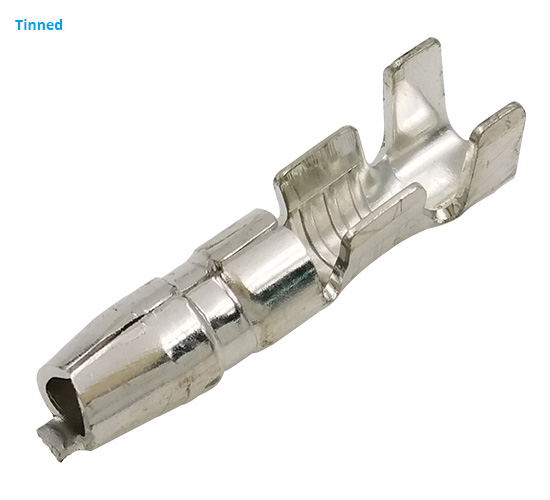

| PM3560002 | 8.1 | Brass | Tinned | 18-14 | 0.5 | 10K | - |
| PM3560002-S | 8.1 | Brass | Tinned | 22-18 | 0.5 | 10K | - |
