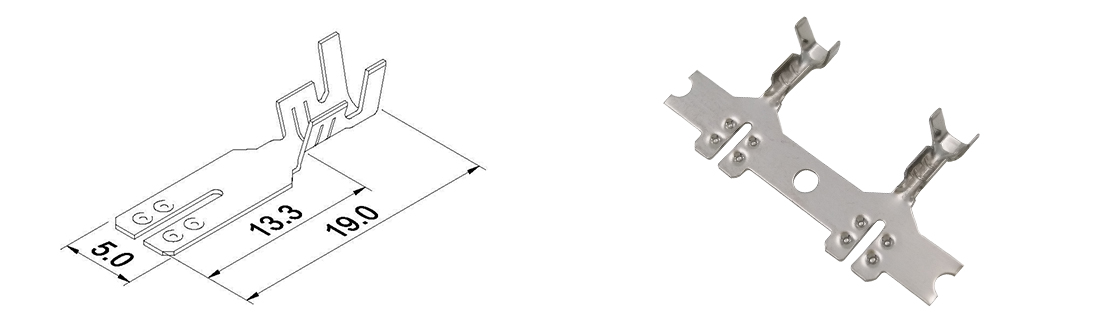

Series NO.: WF500
Terminal Type: Crimp to weld
Terminal Orientation: Straight
Strip Orientation: Side Feed
Your are here:Home > Products > Terminal & Connector > Welding Terminals > Crimp to Weld > WF500
Series NO.: WF500
Terminal Type: Crimp to weld
Terminal Orientation: Straight
Strip Orientation: Side Feed
INQUIRE NOW
| Part NO. | Length | Material | Finish | Wire Range | Thickness |
Packaging Quantity (Reel) |
Certified |
| WF5001405 | 1.40 | Stainless Steel | Unplated | 24-20 | 0.3 | 4K | - |

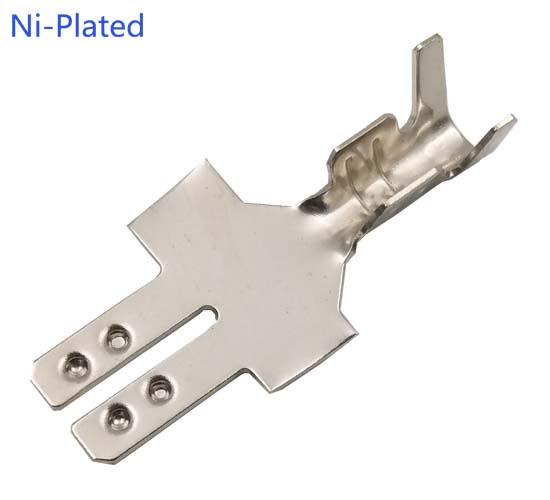

| WF5001903 | 1.90 | Steel | Ni-Plated | 24-20 | 0.3 | 6K | - |
| WF5001903-L | 1.90 | Steel | Ni-Plated | 20-18 | 0.3 | 4K | - |

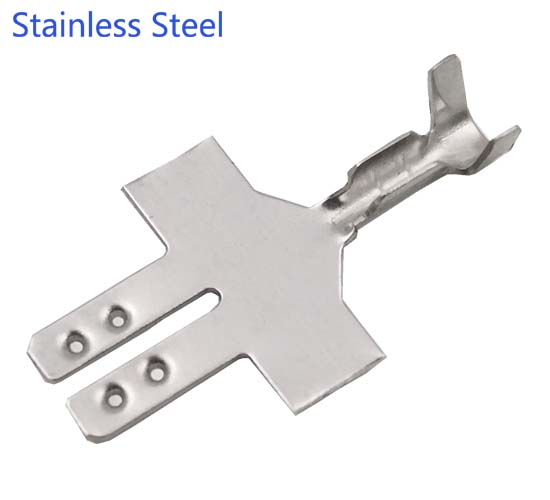

| WF5001905 | 1.90 | Stainless Steel | Unplated | 24-20 | 0.3 | 6K | - |
| WF5001905-L | 1.90 | Stainless Steel | Unplated | 20-18 | 0.3 | 4K | - |
| WF5002903 | 2.90 | Steel | Ni-Plated | 24-20 | 0.3 | 6K | - |
| WF5002903-L | 2.90 | Steel | Ni-Plated | 20-18 | 0.3 | 4K | - |
| WF5002905 | 2.90 | Stainless Steel | Unplated | 24-20 | 0.3 | 6K | - |

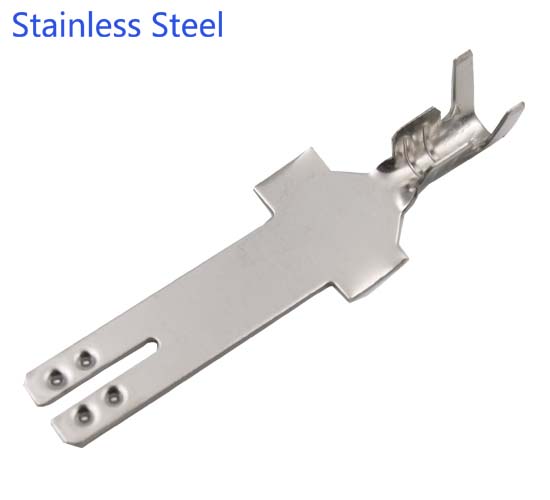

| WF5002905-L | 2.90 | Stainless Steel | Unplated | 20-18 | 0.3 | 4K | - |
