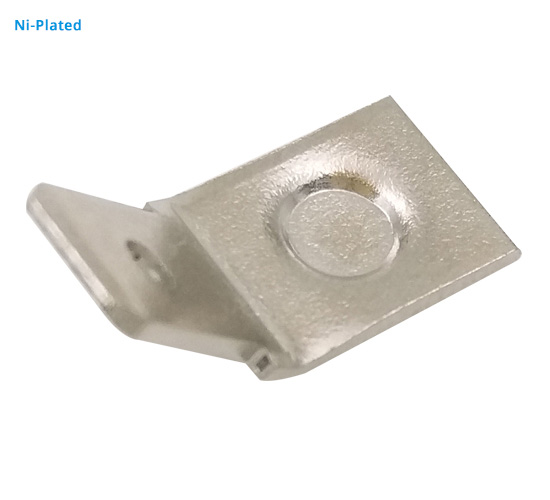

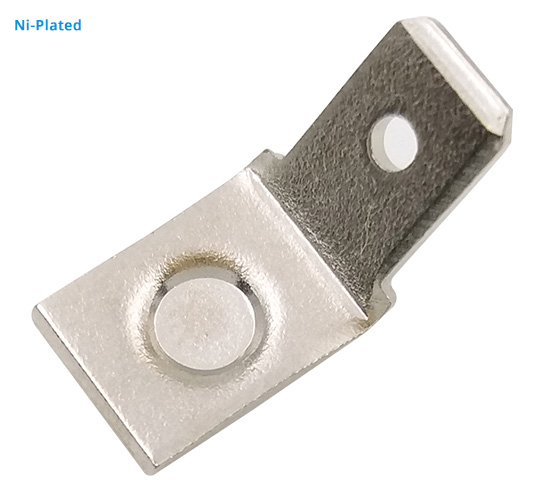

Series NO.: TW18745
Terminal Type: Tab
Terminal Orientation: Straight
Terminal Angle: 45°

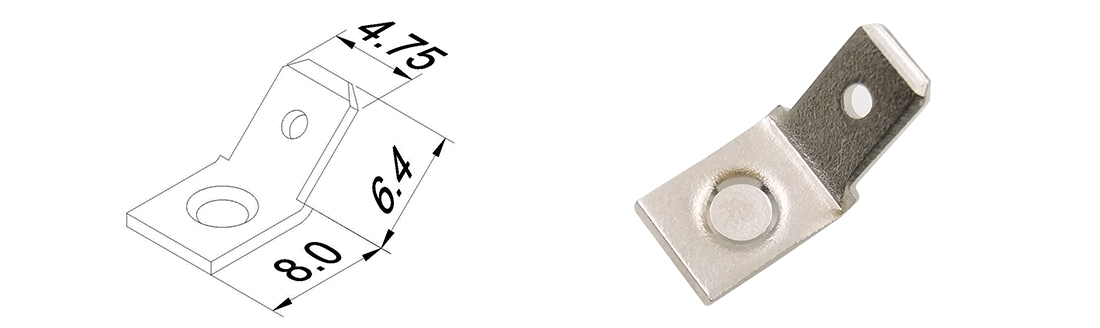

Tab width: 4.8mm
Your are here:Home > Products > Terminal & Connector > Welding Terminals > Weld Tab > TW18745
Series NO.: TW18745
Terminal Type: Tab
Terminal Orientation: Straight
Terminal Angle: 45°
Tab width: 4.8mm
INQUIRE NOW
| Part NO. | Angle | Material | Finish | Thickness |
Packaging Quantity (Reel) |
Certified |
| TW1874503-50 | 45 | Steel | Ni-Plated | 0.5 | 2K | - |
| TW1874503-80 | 45 | Steel | Ni-Plated | 0.8 | 2K | - |
| TW1874503-S-80 | 45 | Steel | Ni-Plated | 0.8 | 2K | - |
| TW1874504-80 | 45 | Brass | Ni-Plated | 0.8 | 2K | - |
| TW1874512-50 | 45 | Stainless Steel | Unplated | 0.5 | 2K | - |
