Rated Current: 3A,AC, DC
Rated Voltage: 250V AC, DC
Temperature Range: -25℃ ~ +85℃
Insulation Resistance: 1,000MΩ Min.
Withstand Voltage: 800V AC / Minute
Applicable PC Board Thickness: 0.031”-0.063” (0.8mm-1.6mm)
Contact Resistance: Initial Value/ 10mΩ Max.
After environmental Testing/20mΩ Max.
INQUIRE NOW

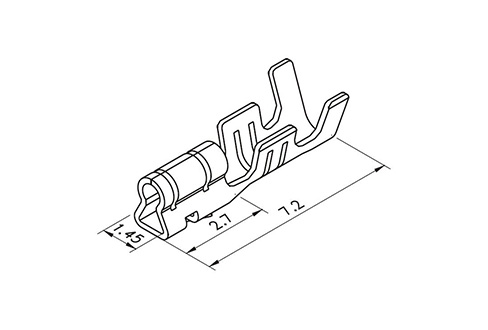

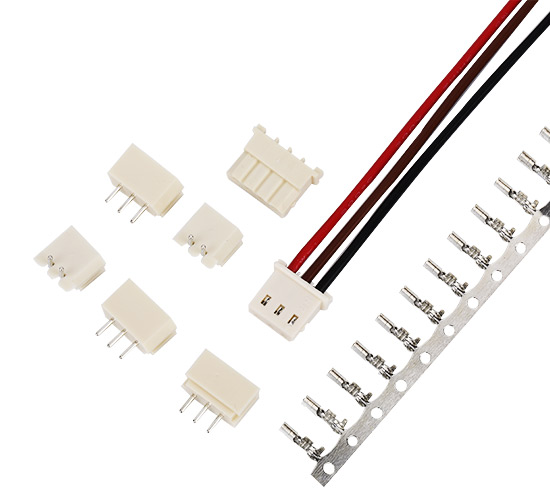

Part No.: ES250
Range Wire: AWG22-26
Material: Phosphor; Brass
Finish: Tin Plated
Thickness : 0.2mm

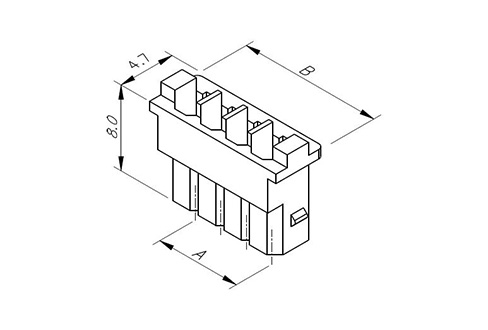

Part No.: JS-1136
Poles:2-15
Material: Nylon 66
| Poles | Dimensions (mm) | Poles | Dimensions (mm) | ||
| A | B | A | B | ||
| 2 | 2.5 | 5.8 | 9 | 20 | 23.3 |
| 3 | 5 | 8.3 | 10 | 22.5 | 25.7 |
| 4 | 7.5 | 10.8 | 11 | 25 | 28.3 |
| 5 | 10 | 13.3 | 12 | 27.5 | 30.8 |
| 6 | 12.5 | 15.8 | 13 | 30 | 33.3 |
| 7 | 15 | 18.3 | 14 | 32.5 | 35.8 |
| 8 | 17.5 | 20.8 | 15 | 35 | 38.3 |

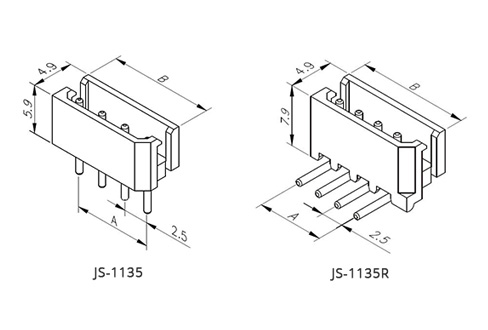

Part No.: JS-1135, JS-1135R
Pins: 2-15
Material: Contact:Brass Tin Plated;
Base:Nylon 66
| Poles | Dimensions (mm) | Poles | Dimensions (mm) | ||
| A | B | A | B | ||
| 2 | 2.5 | 7.5 | 9 | 20 | 25 |
| 3 | 5 | 10 | 10 | 22.5 | 27.5 |
| 4 | 7.5 | 12.5 | 11 | 25 | 30 |
| 5 | 10 | 15 | 12 | 27.5 | 32.5 |
| 6 | 12.5 | 17.5 | 13 | 30 | 35 |
| 7 | 15 | 20 | 14 | 32.5 | 37.5 |
| 8 | 17.5 | 22.5 | 15 | 35 | 40 |
