Rated Current: 3A, AC, DC
Rated Voltage: 250V AC, DC
Temperature Range: -25 ℃ — +85℃
Insulation Resistance: 500MΩ Min.
Withstand Voltage: 1000V AC / Minute
Contact Resistance: Initial Value/ 10MΩ Max.
After Environmental Testing/20mΩ Max.
Your are here:Home > Products > Terminal & Connector > Contacts > Wire to Wire Connector > EP260
Rated Current: 3A, AC, DC
Rated Voltage: 250V AC, DC
Temperature Range: -25 ℃ — +85℃
Insulation Resistance: 500MΩ Min.
Withstand Voltage: 1000V AC / Minute
Contact Resistance: Initial Value/ 10MΩ Max.
After Environmental Testing/20mΩ Max.

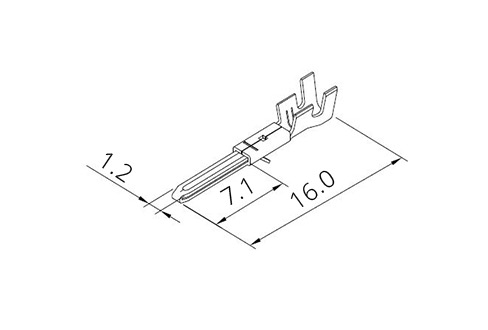

Part No.: EP2601202
Range Wire: AWG22-24
Material: Brass
Finish: Tin Plated
Thickness: 0.25mm
Q’TY: 7K/Reel

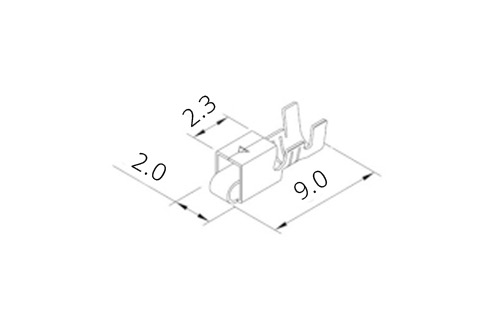

Part No.: ER2601202
Range Wire: AWG22-24
Material: Brass
Finish: Tin Plated
Thickness: 0.25mm
Q’TY: 6K/Reel

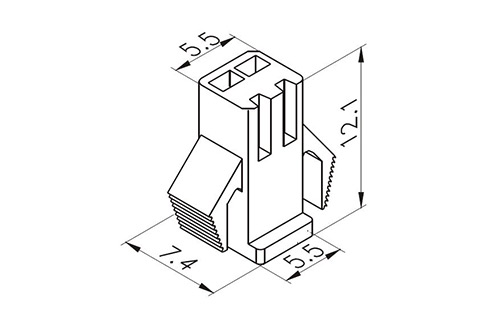

Part No.: SM-2P
Poles: 2-6
Material: Nylon 66
Q’TY: 0.5K/Bag

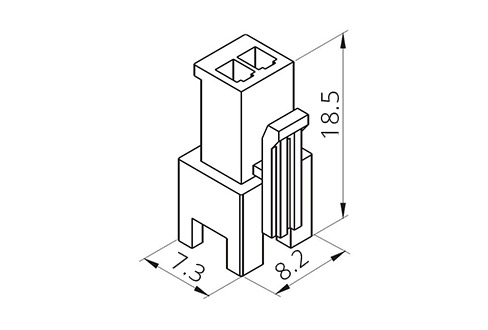

Part No.: SM-2R
Poles: 2-6
Material: Nylon 66
Q’TY: 0.5K/Bag
