Series NO.: Ribbon
Terminal Type: Splices
Splice Type: Thru Splice
Your are here:Home > Products > Terminal & Connector > Crimp Terminals > Splices Ribbon > Splices Ribbon
Series NO.: Ribbon
Terminal Type: Splices
Splice Type: Thru Splice
INQUIRE NOW
| Part NO. |
Thickness (mm) |

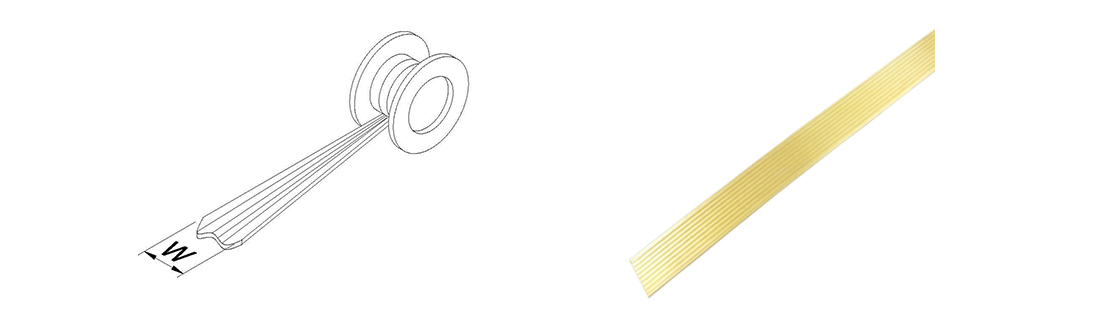

Material | Finish | Wire Range | W |
Packaging Quantity (Reel) |
Certified |
| SR1203001-260 | 0.30 | Brass | - | - | 1.2 | 420M | - |
| SR1204001 | 0.40 | Brass | - | - | 1.2 | 420M | - |
| SR1204001-260 | 0.40 | Brass | - | - | 1.2 | 420M | |
| SR1303001-260 | 0.30 | Brass | - | - | 1.3 | 420M | |
| SR1303001-420 | 0.30 | Brass | - | - | 1.3 | 420M | |
| SR1503001 | 0.30 | Brass | - | - | 1.5 | 420M | |
| SR1503004-420 | 0.30 | Brass | - | - | 1.5 | 420M | |
| SR1504001 | 0.40 | Brass | - | - | 1.5 | 420M | |
| SR1504001-420 | 0.40 | Brass | - | - | 1.5 | 420M | - |
| SR2003001 | 0.30 | Brass | - | - | 2 | 260M | - |
| SR2003001-260 | 0.30 | Brass | - | - | 2 | 260M | - |
| SR2003001-420 | 0.30 | Brass | - | - | 2 | 260M | - |
| SR2003002-260 | 0.30 | Brass | - | - | 2 | 260M | - |
| SR2003004-260 | 0.30 | Brass | - | - | 2 | 260M | - |
| SR2004001 | 0.40 | Brass | - | - | 2 | 260M | - |
| SR4002503 | 0.25 | Steel | Ni-Plated | - | 4 | 260M | - |
| SR4003001 | 0.30 | Brass | - | - | 4 | 260M | - |
| SR4003001\01 | 0.30 | Brass | - | - | 4 | 260M | - |
| SR40030017 | 0.30 | Brass | - | - | 4 | 260M | - |
| SR4003003 | 0.30 | Steel | - | - | 4 | 260M | - |
| SR4004001 | 0.40 | Brass | - | - | 4 | 260M | |
| SR4004001\01 | 0.40 | Brass | - | - | 4 | 260M | |
| SR4004001-200 | 0.40 | Brass | - | - | 4 | 260M | |
| SR4004001-260 | 0.40 | Brass | - | - | 4 | 260M | |
| SR4004002 | 0.40 | Brass | - | - | 4 | 260M | |
| SR4004003 | 0.40 | Steel | - | - | 4 | 260M | |
| SR4102503 | 0.25 | Steel | Ni-Plated | - | 4 | 260M | |
| SR5503001-120 | 0.30 | Brass | - | - | 5.5 | 120M | |
| SR6003001 | 0.30 | Brass | - | - | 6 | 120M | |
| SR6003001-130 | 0.30 | Brass | - | - | 6 | 120M | |
| SR6004001 | 0.40 | Brass | - | - | 6 | 120M | |
| SR6004002 | 0.40 | Brass | - | - | 6 | 120M | |
| SR8003001 | 0.30 | Brass | - | - | 8 | 120M |
