Series NO.：RH480
Terminal Type:Ring Tongue
Terminal Orientation: Straight
Your are here:Home > Products > Terminal & Connector > Crimp Terminals > Crimp Rings > RH480
Series NO.：RH480
Terminal Type:Ring Tongue
Terminal Orientation: Straight
INQUIRE NOW

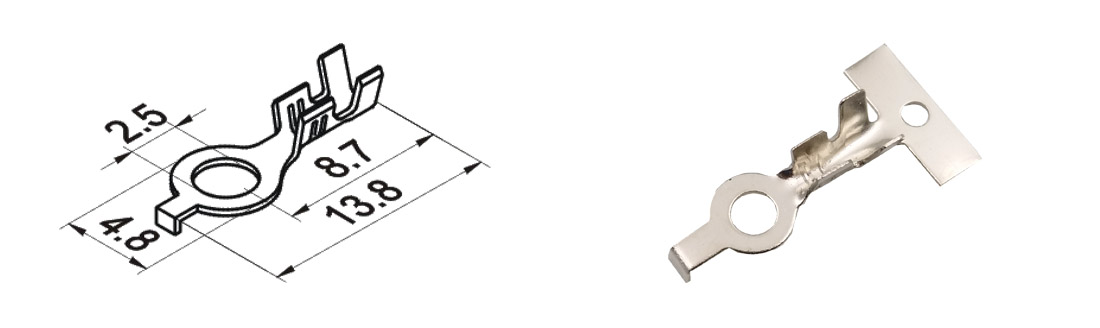

| Part NO. |
Hole D (mm) |
Material | Finish |
Wire Range (AWG) |
Thickness (mm) |
Packaging Quantity (Reel) |
Certified |

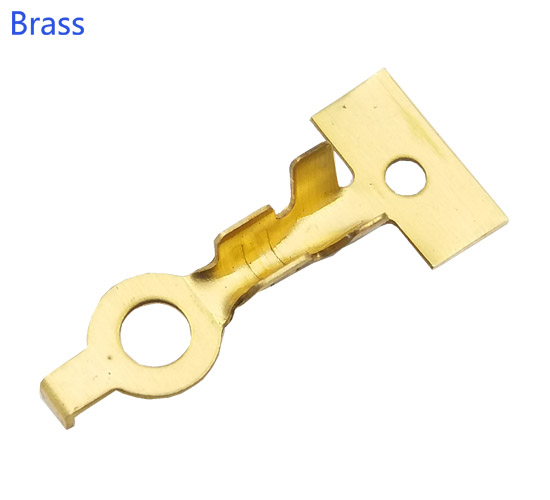

| RH4802501 | 2.5 | Brass | Unplated | 24-20 | 0.30 | 5K | - |
| RH4802501-50 | 2.5 | Brass | Unplated | 24-20 | 0.50 | 5K | - |
| RH4802501-S | 2.5 | Brass | Unplated | 0.30 | 5K | - | |

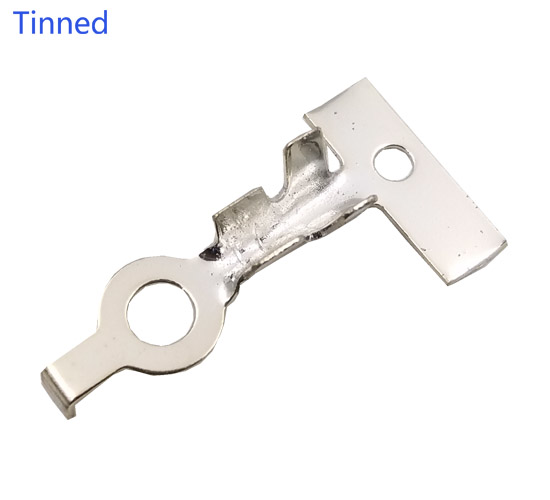

| RH4802502 | 2.5 | Brass | Tinned | 24-20 | 0.30 | 5K | - |

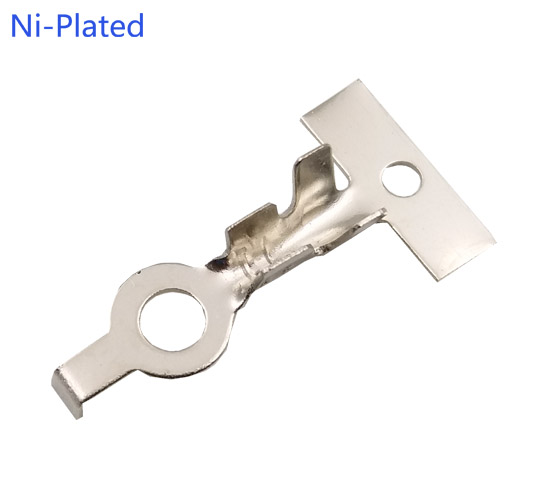

| RH4802504 | 2.5 | Brass | Ni-Plated | 24-20 | 0.30 | 5K | - |
| RH4802504-50 | 2.5 | Brass | Ni-Plated | 24-20 | 0.50 | 5K | - |
| RH4802504-S | 2.5 | Brass | Ni-Plated | 0.30 | 5K | - | |
| RH4802504-S-50 | 2.5 | Brass | Ni-Plated | 0.50 | 5K | - |
