Series NO.：RS650
Terminal Type:Ring Tongue
Terminal Orientation: Straight
Your are here:Home > Products > Terminal & Connector > Crimp Terminals > Crimp Rings > RS650
Series NO.：RS650
Terminal Type:Ring Tongue
Terminal Orientation: Straight
INQUIRE NOW
| Part NO. |
Hole D (mm) |
Material | Finish |
Wire Range (AWG) |
Thickness (mm) |
Packaging Quantity (Reel) |
Certified |
| RS6503201-40 | 3.2 | Brass | Unplated | 22-18 | 0.40 | 10K | - |

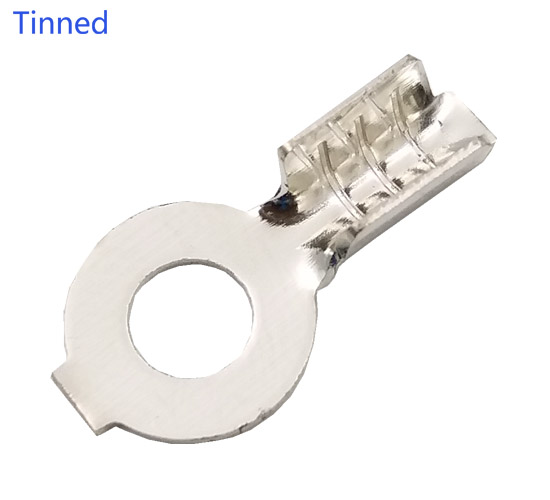

| RS6503202-40 | 3.2 | Brass | Tinned | 22-18 | 0.40 | 10K | - |
| RS6503202-50 | 3.2 | Brass | Tinned | 22-18 | 0.50 | 10K | - |

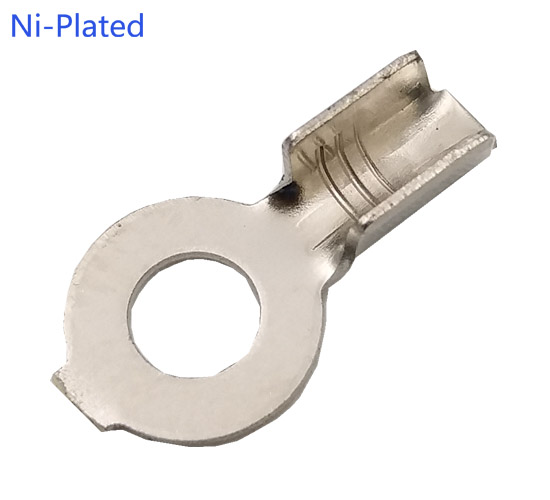

| RS6503203-40 | 3.2 | Steel | Ni-Plated | 22-18 | 0.40 | 10K | - |
| RS6503204-40 | 3.2 | Brass | Ni-Plated | 22-18 | 0.40 | 10K | - |
| RS6503205-40 | 3.2 | Stainless Steel | Unplated | 22-18 | 0.40 | 10K | - |
| RS6503701-40 | 3.7 | Brass | Unplated | 22-18 | 0.40 | 10K | - |
| RS6503702-50 | 3.7 | Brass | Tinned | 22-18 | 0.50 | 10K | - |
| RS6504302-50 | 4.3 | Brass | Tinned | 22-18 | 0.50 | 10K | - |
| RS6502503-50 | 2.5 | Steel | Ni-Plated | 22-18 | 0.50 | 10K | - |
