Series NO.：RT600
Terminal Type:Ring Tongue
Terminal Orientation: Straight
Your are here:Home > Products > Terminal & Connector > Crimp Terminals > Crimp Rings > RT600
Series NO.：RT600
Terminal Type:Ring Tongue
Terminal Orientation: Straight
INQUIRE NOW
| Part NO. |
Hole D |
Material | Finish | Wire Range | Thickness |
Packaging Quantity (Reel) |
Certified |

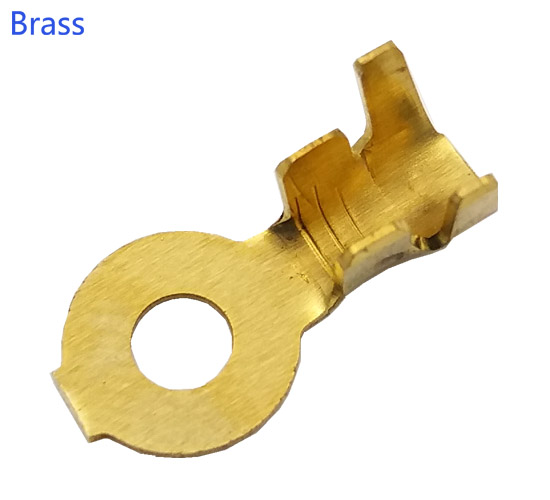

| RT6002501-40 | 2.5 | Brass | Unplated | 22-18 | 0.4 | 10K | - |
| RT6002501-L-40 | 2.5 | Brass | Unplated | 2X20 | 0.4 | 10K | - |
| RT6002501-S-40 | 2.5 | Brass | Unplated | 24-20 | 0.4 | 10K | - |

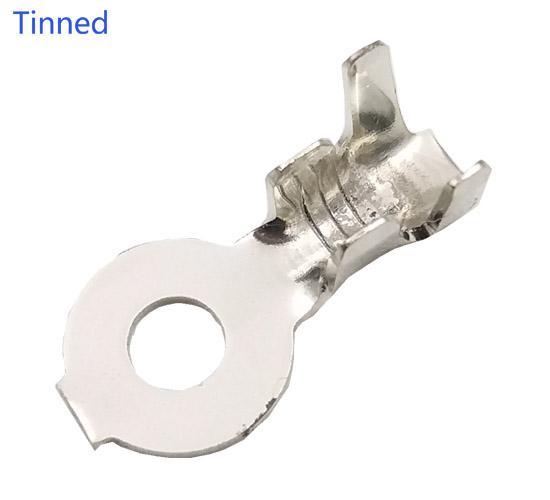

| RT6002502-40 | 2.5 | Brass | Tinned | 22-18 | 0.4 | 10K | - |
| RT6002504-40 | 2.5 | Brass | Ni-Plated | 22-18 | 0.4 | 10K | - |
| RT6003201-40 | 3.2 | Brass | Unplated | 22-18 | 0.4 | 10K | - |
| RT6003202-30 | 3.2 | Brass | Tinned | 22-18 | 0.4 | 10K | - |
| RT6003202-40 | 3.2 | Brass | Tinned | 22-18 | 0.4 | 10K | - |
| RT6003202-S-30 | 3.2 | Brass | Tinned | 24-20 | 0.3 | 10K | - |
| RT6003203-S-40 | 3.2 | Steel | Ni-Plated | 24-20 | 0.4 | 10K | - |
| RT6003204-S-50 | 3.2 | Brass | Ni-Plated | 24-20 | 0.5 | 10K | - |
| RT6003702-30 | 3.7 | Brass | Tinned | 22-18 | 0.3 | 10K | - |
| RT6003702-40 | 3.7 | Brass | Tinned | 22-18 | 0.4 | 10K | - |
| RT6004302-S-40 | 4.3 | Brass | Tinned | 24-20 | 0.4 | 10K | - |
| RT6004303-30 | 4.3 | Steel | Ni-Plated | 22-18 | 0.3 | 10K | - |
