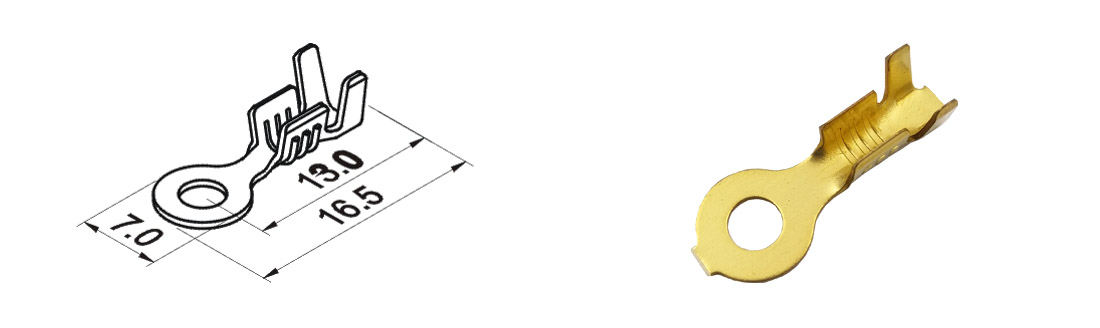

Series NO.：RT700
Terminal Type:Ring Tongue
Terminal Orientation: Straight
Your are here:Home > Products > Terminal & Connector > Crimp Terminals > Crimp Rings > RT700
Series NO.：RT700
Terminal Type:Ring Tongue
Terminal Orientation: Straight
INQUIRE NOW
| Part NO. |
Hole D (mm) |
Material | Finish |
Wire Range (AWG) |
Thickness (mm) |
Packaging Quantity (Reel) |
Certified |

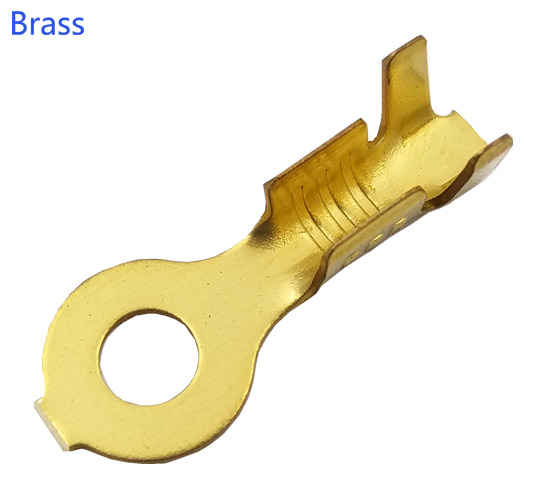

| RT7003201-40 | 3.2 | Brass | Unplated | 18-16 | 0.40 | 7K | - |
| RT7003201-50 | 3.2 | Brass | Unplated | 18-16 | 0.50 | 7K | - |
| RT7003201-L-40 | 3.2 | Brass | Unplated | 2X18 | 0.40 | 7K | - |

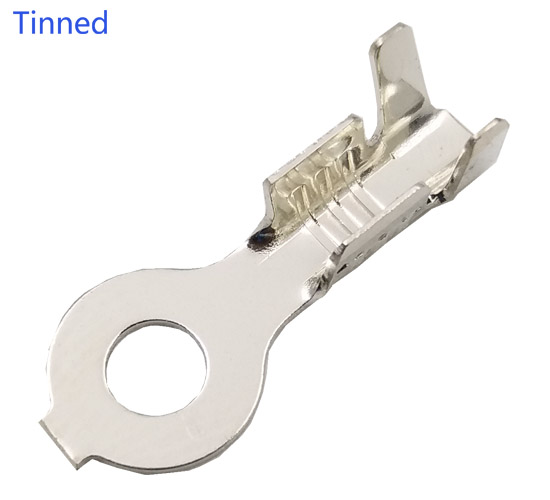

| RT7003202-40 | 3.2 | Brass | Tinned | 18-16 | 0.40 | 7K | - |
| RT7003202-50 | 3.2 | Brass | Tinned | 18-16 | 0.50 | 7K | - |
| RT7003202-L-40 | 3.2 | Brass | Tinned | 2X18 | 0.40 | 7K | - |
| RT7003202-L-50 | 3.2 | Brass | Tinned | 2X18 | 0.50 | 7K | - |
| RT7003202-S-50 | 3.2 | Brass | Tinned | 22-18 | 0.50 | 7K | - |

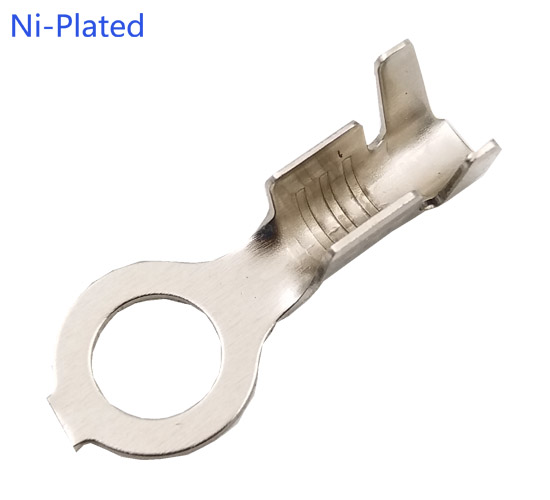

| RT7003203-40 | 3.2 | Steel | Ni-Plated | 18-16 | 0.40 | 7K | - |
| RT7003204-40 | 3.2 | Brass | Ni-Plated | 18-16 | 0.40 | 7K | - |
| RT7003702-40 | 3.7 | Brass | Tinned | 18-16 | 0.40 | 7K | - |
| RT7003702-50 | 3.7 | Brass | Tinned | 18-16 | 0.50 | 7K | - |
| RT7003702-S-40 | 3.7 | Brass | Tinned | 22-18 | 0.40 | 7K | - |
| RT7003702-S-50 | 3.7 | Brass | Tinned | 22-18 | 0.50 | 7K | - |
| RT7004302-40 | 4.3 | Brass | Tinned | 18-16 | 0.40 | 7K | - |
| RT7004302-50 | 4.3 | Brass | Tinned | 18-16 | 0.50 | 7K | - |
| RT7004302-S-40 | 4.3 | Brass | Tinned | 22-18 | 0.40 | 7K | - |
| RT7004302-S-50 | 4.3 | Brass | Tinned | 22-18 | 0.50 | 7K | - |
| RT7004303-40 | 4.3 | Steel | Ni-Plated | 18-16 | 0.40 | 7K | - |
| RT7004304-40 | 4.3 | Brass | Ni-Plated | 18-16 | 0.40 | 7K | - |
| RT7005101-40 | 5.1 | Brass | Unplated | 18-16 | 0.40 | 7K | - |
| RT7005102-40 | 5.1 | Brass | Tinned | 18-16 | 0.40 | 7K | - |
| RT7005301-50 | 5.3 | Brass | Unplated | 18-16 | 0.50 | 7K | - |
| RT7005302-50 | 5.3 | Brass | Tinned | 18-16 | 0.50 | 7K | - |
