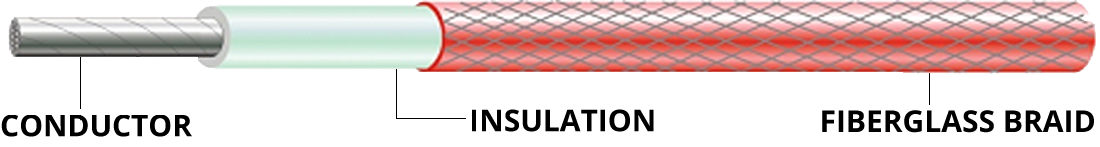

Rated Temperature: 150℃
Rated Voltage: 300V
Insulation: Silicone Rubber Insulation
Conductor: Tinned Copper
Standard: UL758, UL1581
UL File No.: E310829
Your are here:Home > Products > High Temperature Wire > UL STYLE 3068
INQUIRE NOW
AWM STYLE 3068 NO.AWG 150℃ 300V SILICONE RUBBER POWER ACT AWM I A 150℃ 300V FT2 -LF-
| Electrical Properties | Dielectric Strength Test | 2000V , without break down |
| Spark Test | 3000V AC, without break down | |
| Insulation Resistance | ≥8MΩ | |
| Physical Performance | Tensile Strength | ≥3.45 Mpa |
| Elongation | ≥100 % | |
| Tensile Force | ≥6.0N | |
| FT2 Flame test | Shall not convey flame along its length，shall not convey flame to combustible materials in its vicinity. |
| Type | AWG | Conductor Size | Conductor Resistance | Conductor | Insulation thickness | Fiber Glass Braid thickness | Overall Diameter | Package ft/roll | ||
| (No./ mm) | 20℃ | Dia.(mm) | (mm) | (mm) | (mm) | |||||
| ±0.005mm | （Ω/Km） | Nom. | Min. | Average | Tolerance | |||||
| 3068 | 16 | 52/0.18 | 14.6 | 1.5 | 0.45 | 0.33 | 0.2 | 2.7 | ±0.15 | 1000 |
| 18 | 34/0.18 | 23.2 | 1.21 | 0.45 | 0.33 | 0.2 | 2.4 | ±0.10 | 1000 | |
| 20 | 21/0.18 | 36.7 | 0.95 | 0.45 | 0.33 | 0.15 | 2.1 | ±0.10 | 1000 | |
| 22 | 17/0.16 | 59.4 | 0.76 | 0.45 | 0.33 | 0.15 | 2 | ±0.10 | 1000 | |
| 24 | 11/0.16 | 94.2 | 0.61 | 0.45 | 0.33 | 0.15 | 1.8 | ±0.10 | 1000 | |
| 26 | 7/0.16 | 150 | 0.48 | 0.45 | 0.33 | 0.15 | 1.65 | ±0.10 | 1000 | |
| 28 | 7/0.127 | 239 | 0.39 | 0.45 | 0.33 | 0.15 | 1.55 | ±0.10 | 1000 | |
| 30 | 7/0.1 | 381 | 0.31 | 0.45 | 0.33 | 0.15 | 1.6 | ±0.10 | 1000 | |
