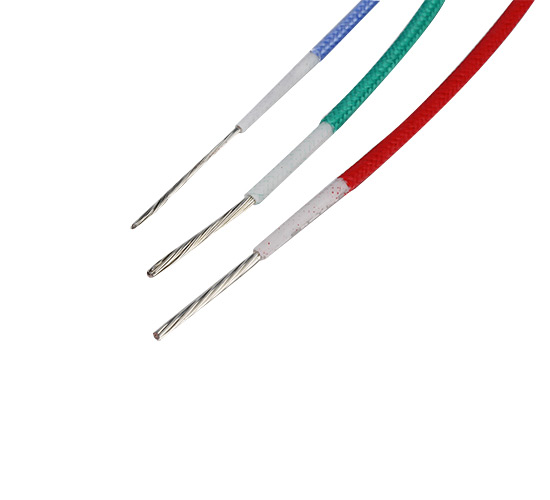

Rated Temperature: 180℃
Rated Voltage: 300/500V
Insulation: Silicone Rubber Insulation
Conductor: Tinned Copper
Standard: EN50363-1, EN60228
Certificate No.: 40042356
INQUIRE NOW
VDE H05SJ-K 1x0.5mm² 180℃ 300/500V POWER ACT NO.40042356 SILICONE RUBBER
|
Electrical Properties |
Dielectric Strength Test | 2000V , without break down |
| Spark Test(HF) | 6000V AC(0.5-1.5mm2),7000V AC(2.5mm2) without break down | |
| Physical Performance | Tensile Strength | ≥5.0 N/mm2 |
| Elongation | ≥150 % | |
| Hot set test |
Max. elongation under load 100% Max. elongation after unloading 25% |
| Type |
Section (mm2) |
Conductor Size (No./ mm) ±0.005mm |
Conductor Resistance 20℃ （Ω/Km） |
Conductor Dia. (mm) |
Insulation thickness (mm) |
Fiber Glass Braid thickness (mm) |
Overall Diameter (mm) |
Package M/roll | ||
| Nom. | Min. | Min. | Max. | |||||||
| H05SJ-K | 0.5 | 20/0.18 | 40.1 | 0.93 | 0.685 | 0.44 | 0.15 | 2.6 | 3.3 | 305 |
| 16/0.2 | 40.1 | 0.93 | 0.685 | 0.44 | 0.15 | 2.6 | 3.3 | 305 | ||
| 0.75 | 30/0.18 | 26.7 | 1.14 | 0.685 | 0.44 | 0.15 | 2.8 | 3.5 | 305 | |
| 24/0.2 | 26.7 | 1.14 | 0.685 | 0.44 | 0.15 | 2.8 | 3.5 | 305 | ||
| 1.0 | 40/0.18 | 20.0 | 1.31 | 0.650 | 0.44 | 0.15 | 2.9 | 3.7 | 305 | |
| 32/0.2 | 20.0 | 1.32 | 0.650 | 0.44 | 0.15 | 2.9 | 3.7 | 305 | ||
| 1.5 | 30/0.254 | 13.7 | 1.62 | 0.750 | 0.53 | 0.20 | 3.4 | 4.2 | 200 | |
| 48/0.2 | 13.7 | 1.62 | 0.750 | 0.53 | 0.20 | 3.4 | 4.2 | 200 | ||
| 2.5 | 50/0.254 | 8.21 | 2.05 | 0.825 | 0.62 | 0.20 | 4.0 | 5.0 | 200 | |
