Rated Temperature: 200℃
Rated Voltage: 300V
Insulation: Silicone Rubber Insulation
Conductor: Tinned Copper
Standard: UL758, UL1581
UL File No.: E310829

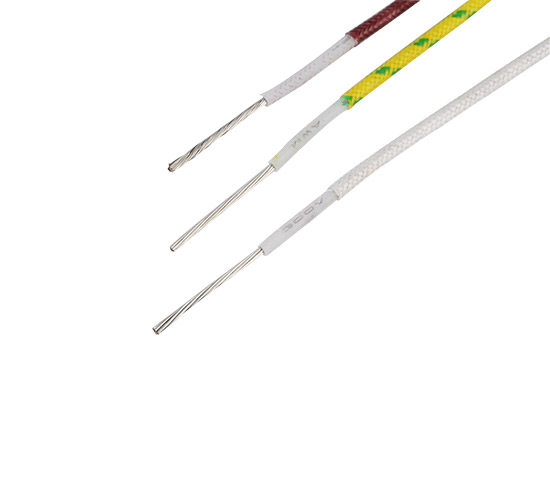

Your are here:Home > Products > High Temperature Wire > UL STYLE 3122
Rated Temperature: 200℃
Rated Voltage: 300V
Insulation: Silicone Rubber Insulation
Conductor: Tinned Copper
Standard: UL758, UL1581
UL File No.: E310829
INQUIRE NOW
E310829 AWM STYLE 3122 NO.AWG 200℃ 300V SILICONE RUBBER POWER ACT AWM I A 200℃ 300V FT2 -LF-
Electrical Properties |
Dielectric Strength Test | 2000V , without break down |
Spark Test | 3000V AC, without break down | |
Insulation Resistance | ≥8MΩ | |
Physical Performance | Tensile Strength | ≥3.45 Mpa |
Elongation | ≥100 % | |
Tensile Force | ≥6.0N | |
FT2 Flame test | Shall not convey flame along its length,shall not convey flame to combustible materials in its vicinity. |
Type | AWG |
Conductor Size (No./ mm) ±0.005mm |
Conductor Resistance 20℃ (Ω/Km) |
Conductor Dia.(mm) |
Insulation thickness (mm) |
Fiber Glass Braid thickness (mm) |
Overall Diameter (mm) |
Package ft/roll | ||
Nom. | Min. | Average | Tolerance | |||||||
3122 | 16 | 7/0.50 | 14.60 | 1.52 | 0.45 | 0.33 | 0.20 | 2.80 | ±0.15 | 1000 |
26/0.254 | 14.60 | 1.49 | 0.45 | 0.33 | 0.20 | 2.80 | ±0.15 | 1000 | ||
52/0.18 | 14.60 | 1.50 | 0.45 | 0.33 | 0.20 | 2.80 | ±0.15 | 1000 | ||
18 | 7/0.39 | 23.20 | 1.19 | 0.45 | 0.33 | 0.20 | 2.50 | ±0.10 | 1000 | |
16/0.254 | 23.20 | 1.17 | 0.45 | 0.33 | 0.20 | 2.50 | ±0.10 | 1000 | ||
34/0.18 | 23.20 | 1.21 | 0.45 | 0.33 | 0.20 | 2.50 | ±0.10 | 1000 | ||
20 | 7/0.31 | 36.70 | 0.94 | 0.45 | 0.33 | 0.15 | 2.10 | ±0.10 | 1000 | |
10/0.26 | 36.70 | 0.95 | 0.45 | 0.33 | 0.15 | 2.10 | ±0.10 | 1000 | ||
21/0.18 | 36.70 | 0.95 | 0.45 | 0.33 | 0.15 | 2.10 | ±0.10 | 1000 | ||
22 | 7/0.254 | 59.40 | 0.77 | 0.45 | 0.33 | 0.15 | 2.00 | ±0.10 | 1000 | |
17/0.16 | 59.40 | 0.76 | 0.45 | 0.33 | 0.15 | 2.00 | ±0.10 | 1000 | ||
24 | 7/0.20 | 94.20 | 0.61 | 0.45 | 0.33 | 0.15 | 1.80 | ±0.10 | 1000 | |
11/0.16 | 94.20 | 0.61 | 0.45 | 0.33 | 0.15 | 1.80 | ±0.10 | 1000 | ||
26 | 7/0.16 | 150.00 | 0.48 | 0.45 | 0.33 | 0.15 | 1.70 | ±0.10 | 1000 |
