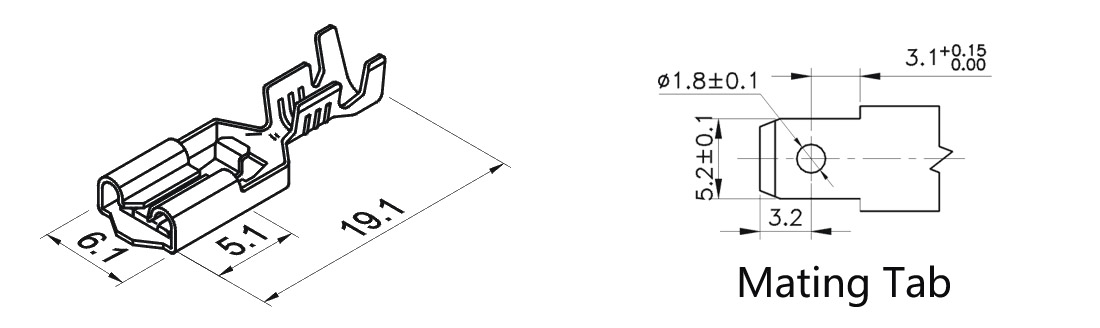

Series No. : LS205
Terminal Type: Receptacle
Terminal Orientation : Straight
Mating Tab width: 5.2mm [.205in]
Your are here:Home > Products > Terminal & Connector > Quick Connect Terminals > 205 Series > LS205
Series No. : LS205
Terminal Type: Receptacle
Terminal Orientation : Straight
Mating Tab width: 5.2mm [.205in]
INQUIRE NOW
| Part NO. |
Mating Tab Thickness (mm) |
Material | Finish |
Wire Range (AWG) |
Thickness (mm) |
Packaging Quantity (Reel) |
Certified |
| LS2050502 | 0.5 | Brass | Tinned | 22-18 | 0.3 | 7K | UL |
| LS2050502-S | 0.5 | Brass | Tinned | 24-20 | 0.3 | 7K | - |
