Series No. : ST205
Terminal Type: Receptacle
Terminal Orientation : Straight

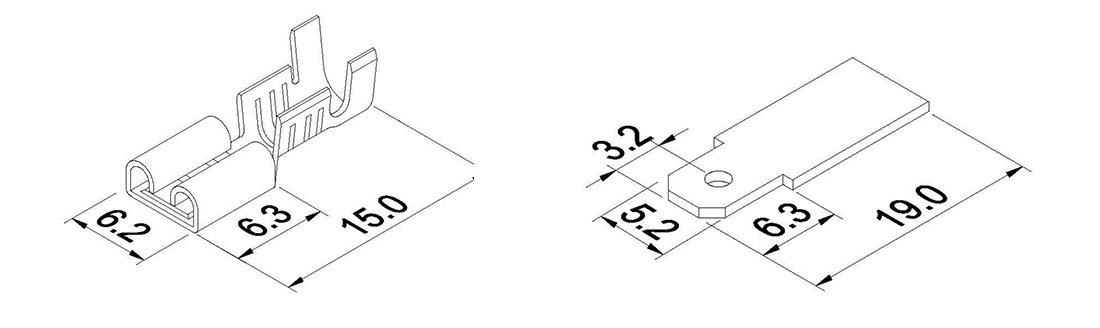

Mating Tab width: 5.2mm [.205in]
Your are here:Home > Products > Terminal & Connector > Quick Connect Terminals > 205 Series > ST205
Series No. : ST205
Terminal Type: Receptacle
Terminal Orientation : Straight
Mating Tab width: 5.2mm [.205in]
INQUIRE NOW
| Part NO. |
Mating Tab Thickness |
Material | Finish | Wire Range | Thickness |
Packaging Quantity (Reel) |
Certified |
| ST2050501 | 0.5 | Brass | Unplated | 22-18 | 0.36 | 7K | - |

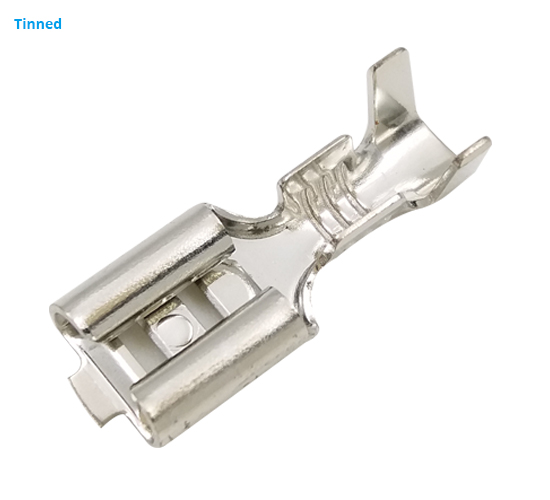

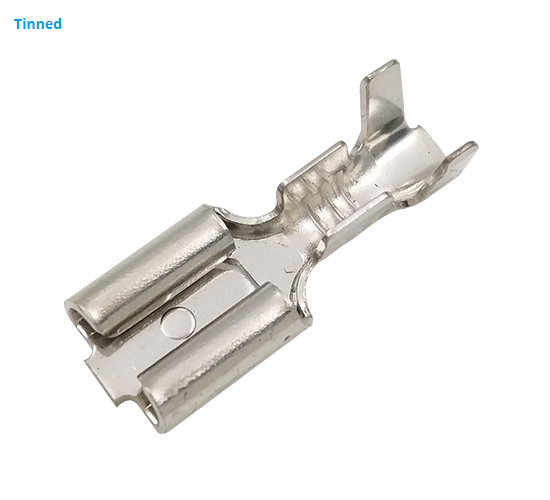

| ST2050502 | 0.5 | Brass | Tinned | 22-18 | 0.36 | 7K | UL |
| ST2050502-L | 0.5 | Brass | Tinned | 18-16 | 0.36 | 7K | - |
| ST2050502-S | 0.5 | Brass | Tinned | 24-20 | 0.36 | 7K | - |
| ST2050511 | 0.5 | Steel | Tinned | 22-18 | 0.36 | 7K | - |
| ST2050511-L | 0.5 | Steel | Tinned | 18-16 | 0.36 | 7K | - |
| ST2050602 | 0.6 | Brass | Tinned | 22-18 | 0.36 | 7K | - |
| ST2050802 | 0.8 | Brass | Tinned | 22-18 | 0.36 | 7K | - |
| ST2050802-L | 0.8 | Brass | Tinned | 18-16 | 0.36 | 7K | - |
| ST2050811-L | 0.8 | Steel | Tinned | 18-16 | 0.36 | 7K | - |

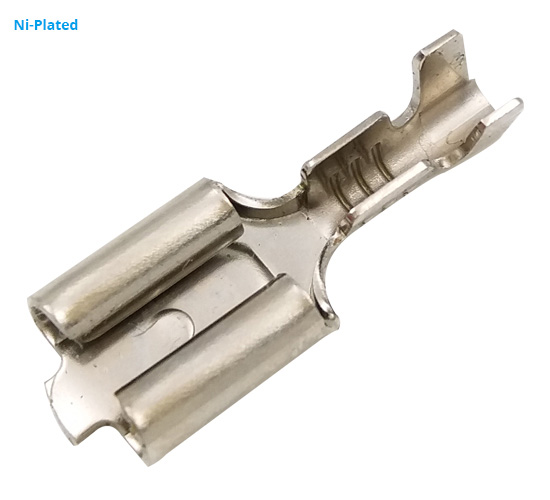

| ST2050503-S | 0.5 | Steel | Ni-Plated | 22-18 | 0.4 | 7K | - |
