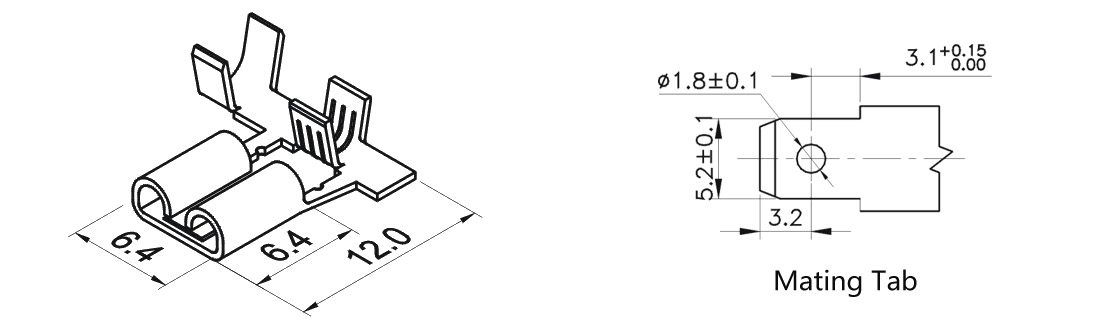

Mating Tab width: 5.2mm [.205in]
Your are here:Home > Products > Terminal & Connector > Quick Connect Terminals > 205 Series > NF205
Series No. : NF205
Terminal Type: Receptacle
Terminal Orientation : Flag
Mating Tab width: 5.2mm [.205in]
INQUIRE NOW
| Part NO. |
Mating Tab Thickness (mm) |
Material | Finish |
Wire Range (AWG) |
Thickness (mm) |
Packaging Quantity (Reel) |
Certified |
| NF2050302 | 0.3 | Brass | Tinned | 22-18 | 0.4 | 5K | - |
| NF2050501 | 0.5 | Brass | Unplated | 22-18 | 0.4 | 5K | - |
| NF2050502 | 0.5 | Brass | Tinned | 22-18 | 0.4 | 5K | - |
| NF2050602 | 0.6 | Brass | Tinned | 22-18 | 0.4 | 5K | UL |
| NF2050602-A | 0.6 | Brass | Tinned | 22-18 | 0.4 | 5K | - |
| NF2050602-XL | 0.6 | Brass | Tinned | 2X18 | 0.4 | 3K | - |
| NF2050802 | 0.8 | Brass | Tinned | 22-18 | 0.4 | 5K | - |
