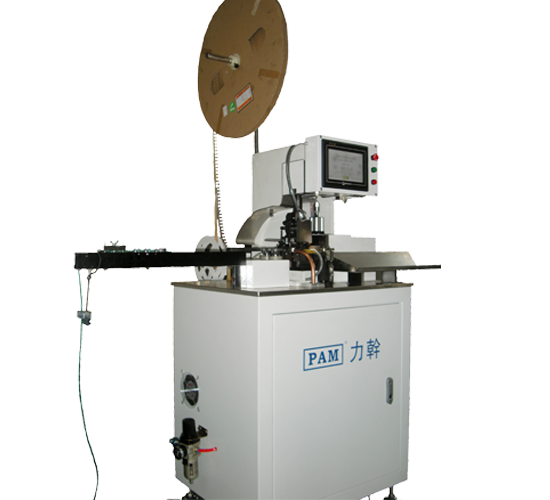

Wire Harness Processing Equipment - Fully Automtic Crimping Machine

Wire Harness Processing Equipment

PAM-10C

INQUIRE NOW

Product parameters

Performance Specification

Name Fully Automtic Crimping Machine
Model PAM-10C
Power Supply AC 220V 50Hz
Motor 1200W
Production Capacity 6000pcs/hr (within 100mm)
Press Capacity 2.0Ton
Pneumatic Supply 0.5-0.6MPa
Wire Range AWG18-30
Cutting Length 15-10000mm
Measurement 850X700X1250mm
Weitht 180kg
Function Wire Cutting, Wire Stripping(single or both ends),
Semi-Stripping, Crimping (single ends)

FEATURE

The main components are imported, providewire cutting, stripping, terminal crimping, etc.

High precision process and the machine is easy to learn, convenient to control.

Special esign for process moving action in straight linear guide, such as wire cutting, stripping, crimping, twisting of wires, etc., improves efficiency and precision.

Double wire pressing roller, the tightness is controlled by tuning knob.

Wire length, stripping length and cutter depth can directly set-up on the touch panel. Scrap automatic sorting and collect.

Automatic fault diagnosis, the red font in display screen prompt failure content and elimination method.
