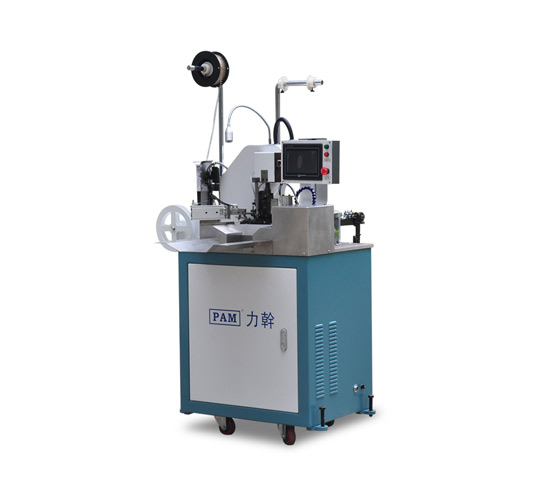

Wire Harness Processing Equipment - Fully Automatic Crimping Machine

Wire Harness Processing Equipment

PAM-10F

Patent No.:

ZL201110050371.1

ZL201120053144.5

ZL201120053142.6


WE NVIEW PLC

Controller from Omron

Pneumatics Parts from SMC

Server from Delta

Sensor from Omron

INQUIRE NOW

Product parameters

Performance Specification

Name Fully Automatic Crimping Machine
Model PAM-10F
Power Supply AC 220V 50Hz
Motor of Crimping Machine 750W
Production Capacity 4500pcs/hr(within 300mm)
Press Capacity 2.0Ton
Pneumatic Supply 0.5-0.6MPa
Wire Range AWG16-28
Cutting Length 35-100000mm
Measurement 850X700X1250mm
Weight 200kg
Function Wire Cutting, Wire Stripping (single or both ends),
Semi-Stripping, Crimping (single ends)

FEATURE

Imported Main Parts

Using controller from Omron,bearing from IKO, pneumatics parts from SMC.

High precision for wire cutting, peeling, crimping height control.

Touch Control Panel, Colorful 360°Rotation

Directly set-up & adjust the program for wire length, stripping length, depth of cutter, height of crimping detection point by touch the panel only.

Automatic Fault Diagnosis

The fault content and method of eliminating will display on the panel in red color.

Laser Sensor, Non-contact type

Stop the program to avoid the deformation of wire and terminals.

Processing Program

Level 1-9 speed control,Can adjust the speed during operation, no need to stop the machine. Automation configures set-up to match each speed level simple & stable operation.
