Series No. : LS110
Terminal Type: Receptacle
Terminal Orientation: Straight

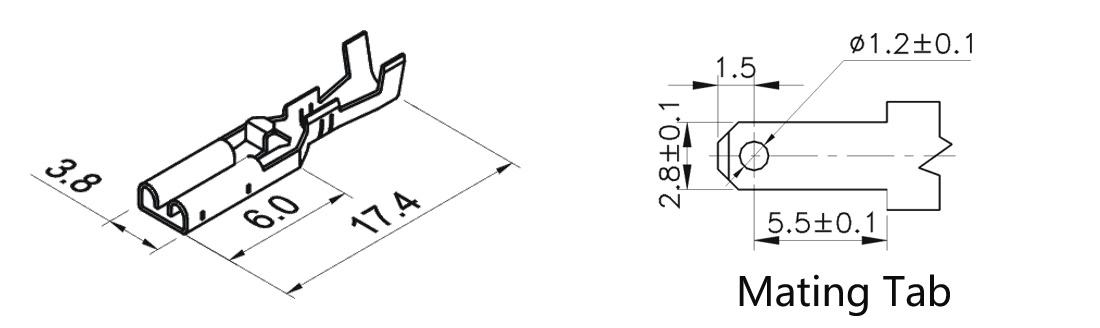

Mating Tab width: 2.8mm[.110in]
Your are here:Home > Products > Terminal & Connector > Quick Connect Terminals > 110 Series > LS110
Series No. : LS110
Terminal Type: Receptacle
Terminal Orientation: Straight
Mating Tab width: 2.8mm[.110in]
INQUIRE NOW
| Part NO. |
Mating Tab Thickness (mm) |
Material | Finish |
Wire Range (AWG) |
Thickness (mm) |
Packaging Quantity (Reel) |
Certified |
| LS1100402-L | 0.4 | Brass | Tinned | 22-18 | 0.25 | 10K | - |

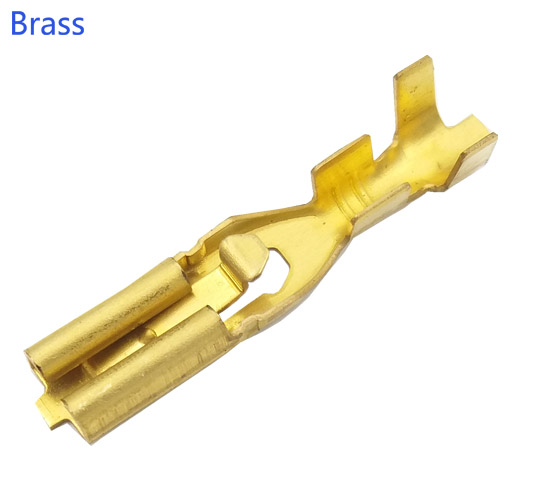

| LS1100501 | 0.5 | Brass | Unplated | 26-22 | 0.25 | 15K | - |
| LS1100501-F | 0.5 | Brass | Unplated | 26-22 | 0.25 | 15K | - |
| LS1100501-L1 | 0.5 | Brass | Unplated | 22-18 | 0.25 | 10K | - |

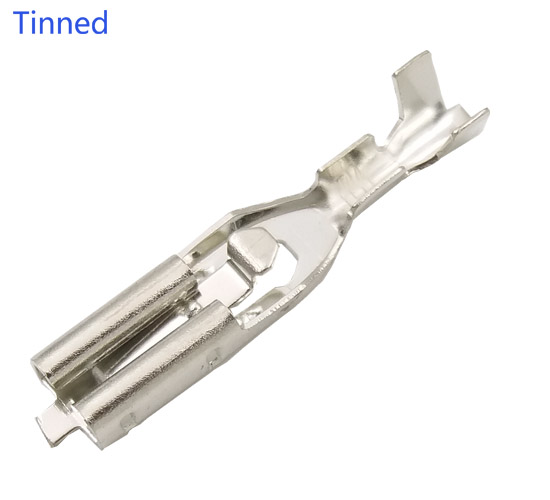

| LS1100502 | 0.5 | Brass | Tinned | 26-22 | 0.25 | 15K | UL |
| LS1100502-L | 0.5 | Brass | Tinned | 22-18 | 0.25 | 10K | - |

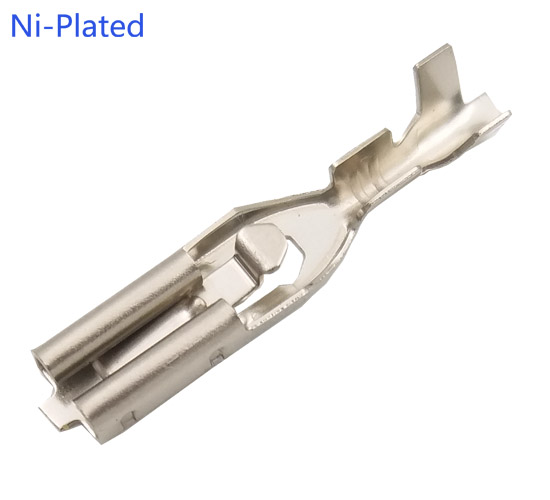

| LS1100504 | 0.5 | Brass | Ni-Plated | 26-22 | 0.25 | 15K | - |
| LS1100802 | 0.8 | Brass | Tinned | 26-22 | 0.25 | 15K | UL |
| LS1100802-L | 0.8 | Brass | Tinned | 22-18 | 0.25 | 10K | - |
