Series NO.：ST280
Terminal Type：Receptacle
Terminal Orientation：Straight
Mating Tab width：2.8mm【.110in】
Your are here:Home > Products > Terminal & Connector > Quick Connect Terminals > 110 Series > ST280
Series NO.：ST280
Terminal Type：Receptacle
Terminal Orientation：Straight
Mating Tab width：2.8mm【.110in】
INQUIRE NOW
| Part NO. |
Mating Tab Thickness (mm) |
Material | Finish |
Wire Range (AWG) |
Thickness (mm) |
Packaging Quantity (Reel) |
Certified |

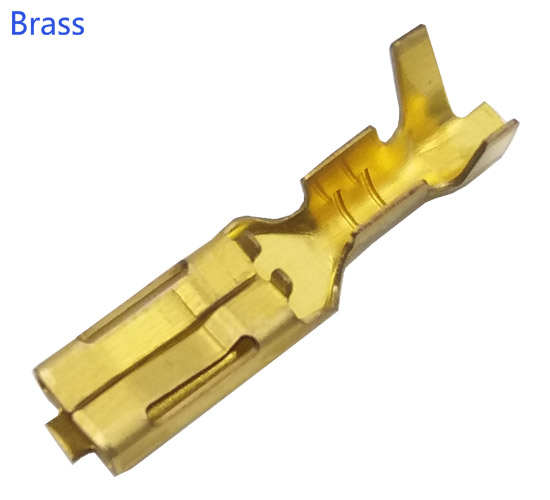

| ST2800501 | 0.5 (DIN) | Brass | Unplated | 20-18 | 0.25 | 10K | CQC、CB |

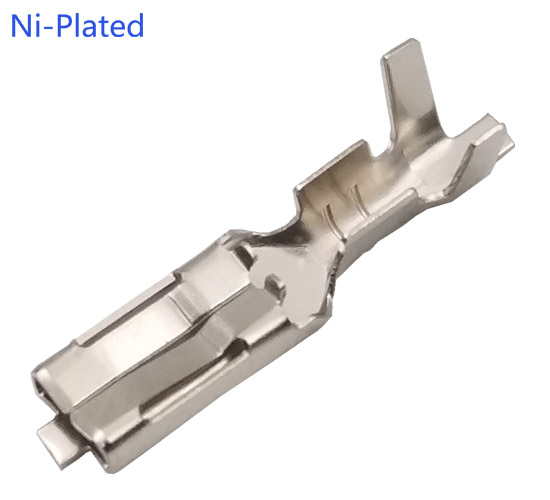

| ST2800504 | 0.5 (DIN) | Brass | Ni-Plated | 20-18 | 0.25 | 10K | - |
| ST2800801 | 0.8 (DIN) | Brass | Unplated | 20-18 | 0.25 | 10K | - |

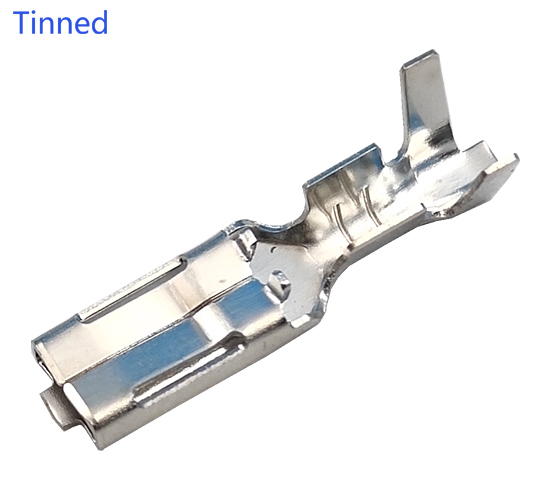

| ST2800502 | 0.5 (DIN) | brass | tin-plated | 20-18 | 0.25 | 10K | CQC、CB |
| ST2800802 | 0.8 (DIN) | brass | tin-plated | 20-18 | 0.25 | 10K | CQC、CB |
| ST2800502-1 | 0.5 (IEC) | brass | tin-plated | 20-18 | 0.25 | 10K | CQC、CB |
| ST2800802-1 | 0.8 (IEC) | brass | tin-plated | 20-18 | 0.25 | 10K | CQC、CB |
| ST2800802-S-1 | 0.8 (IEC) | brass | tin-plated | 24-20 | 0.25 | 15K | CQC、CB |
| ST2800502-S-1 | 0.5 (IEC) | brass | tin-plated | 24-20 | 0.25 | 15K | CQC、CB |
