Series NO.：SL110
Terminal Type：Receptacle
Terminal Orientation：Straight
Mating Tab width：2.8mm【.110in】
Your are here:Home > Products > Terminal & Connector > Quick Connect Terminals > 110 Series > SL110
Series NO.：SL110
Terminal Type：Receptacle
Terminal Orientation：Straight
Mating Tab width：2.8mm【.110in】
INQUIRE NOW
| Part NO. |
Mating Tab Thickness (mm) |
Material | Finish | Wire Range |
Thickness (mm) |
Packaging Quantity (Reel) |
Certified |

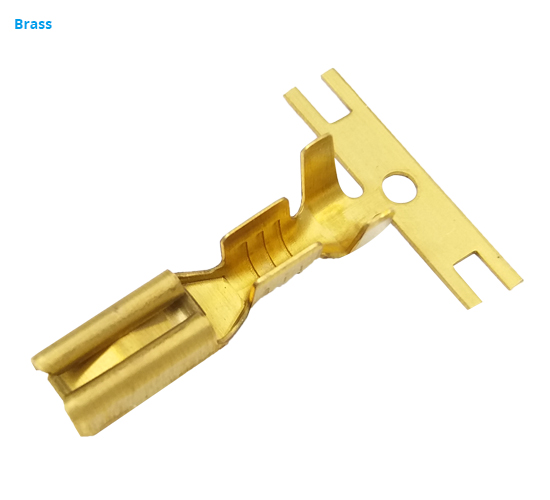

| SL1100501 | 0.5 | Brass | Unplated | 24-20 | 0.25 | 15K | - |

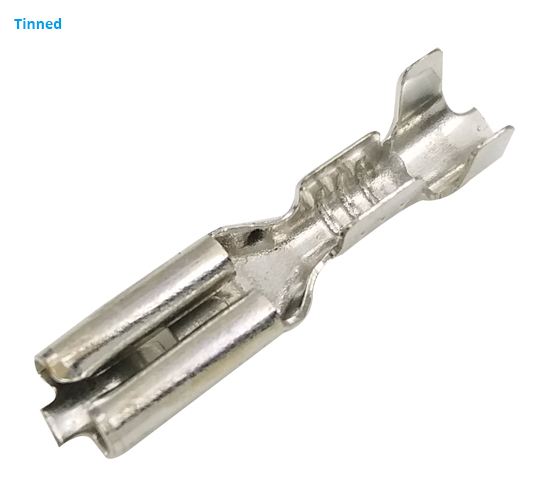

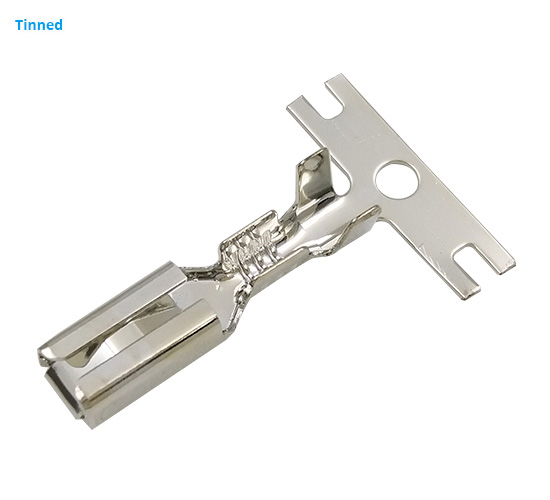

| SL1100502 | 0.5 | Brass | Tinned | 24-20 | 0.25 | 15K | - |
| SL1100502-L | 0.5 | Brass | Tinned | 20-18 | 0.25 | 15K | - |
| SL1100507-H | 0.5 | Phosphor Bronze | Tinned | 24-20 | 0.25 | 15K | - |
| SL1100802 | 0.8 | Brass | Tinned | 24-20 | 0.25 | 15K | - |
