Series No.： LF187
Terminal Type： Receptacle
Terminal Orientation： Flag

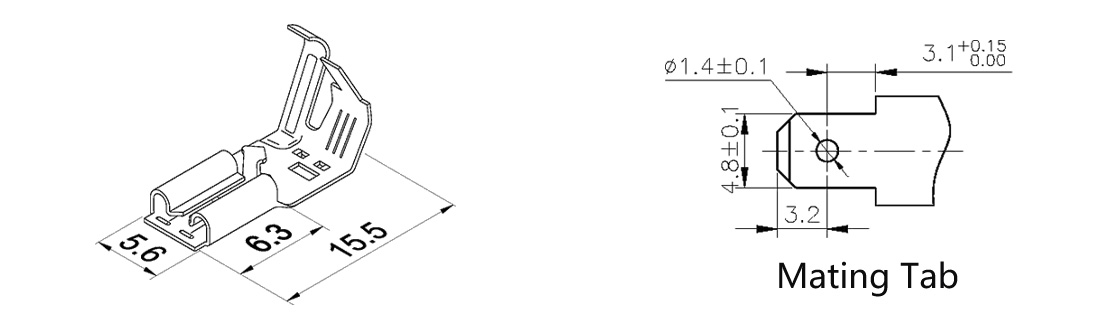

Mating Tab width： 4.8mm[.187in]
Your are here:Home > Products > Terminal & Connector > Quick Connect Terminals > 187 Series > LF187
Series No.： LF187
Terminal Type： Receptacle
Terminal Orientation： Flag
Mating Tab width： 4.8mm[.187in]
INQUIRE NOW
| Part NO. |
Mating Tab Thickness (mm) |
Material | Finish |
Wire Range (AWG) |
Thickness (mm) |
Packaging Quantity (Reel) |
Certified |

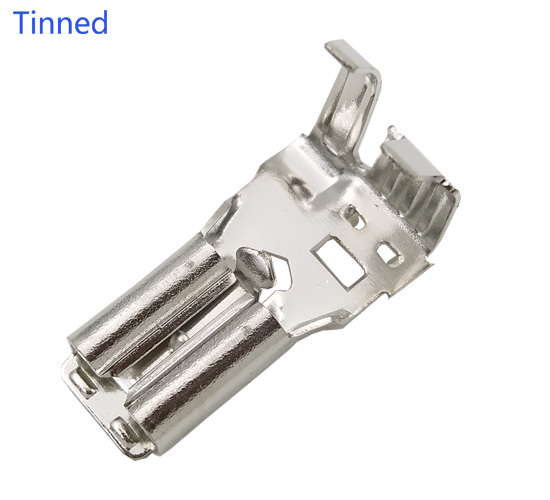

| LF1870502 | 0.5 | Brass | Tinned | 20-18 | 0.3 | 4 | UL |

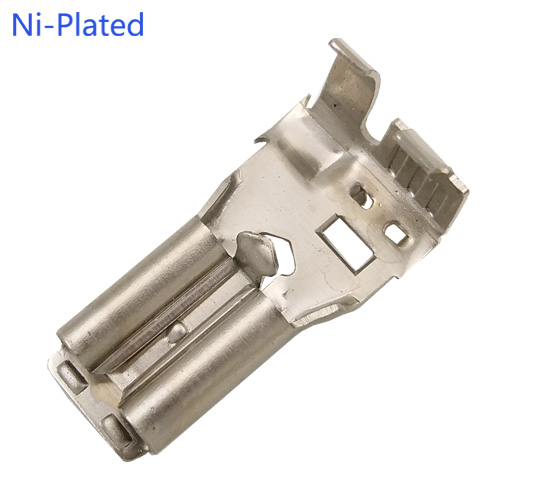

| LF1870504 | 0.5 | Brass | Ni-Plated | 20-18 | 0.3 | 4 | - |

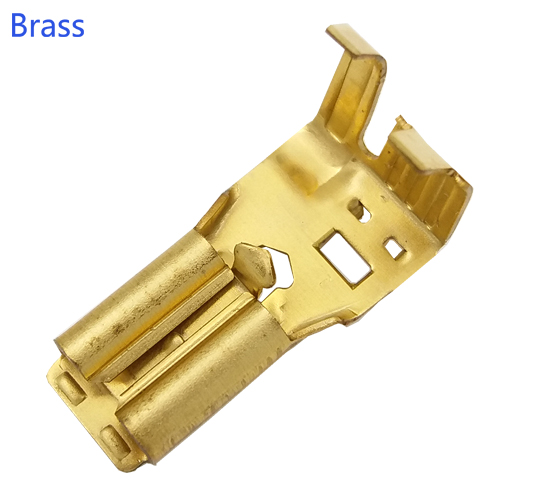

| LF1870801 | 0.8 | Brass | Unplated | 20-18 | 0.3 | 4 | - |
| LF1870802 | 0.8 | Brass | Tinned | 20-18 | 0.3 | 4 | UL |
| LF1870802-2 | 0.8 | Brass | Tinned | 20-18 | 0.3 | 4 | - |
| LF1870804 | 0.8 | Brass | Ni-Plated | 20-18 | 0.3 | 4 | - |
