Series No.： LS480
Terminal Type： Receptacle
Terminal Orientation： Straight

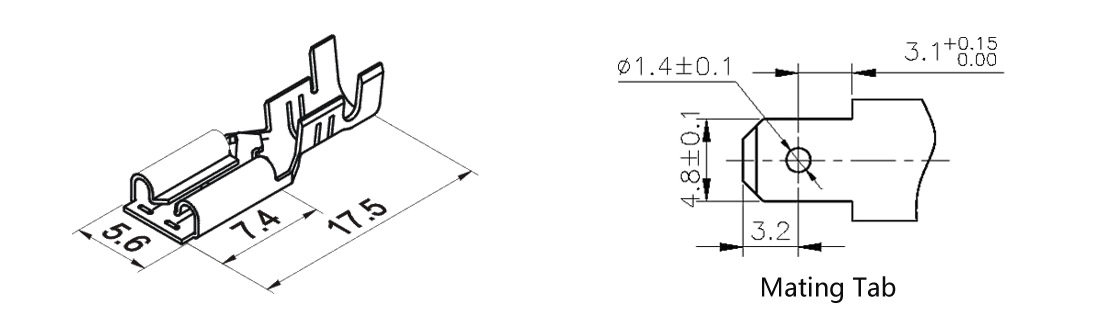

Mating Tab width： 4.8mm[.187in]
Your are here:Home > Products > Terminal & Connector > Quick Connect Terminals > 187 Series > LS480
Series No.： LS480
Terminal Type： Receptacle
Terminal Orientation： Straight
Mating Tab width： 4.8mm[.187in]
INQUIRE NOW
| Part NO. |
Mating Tab Thickness (mm) |
Material | Finish |
Wire Range (AWG) |
Thickness (mm) |
Packaging Quantity (Reel) |
Certified |

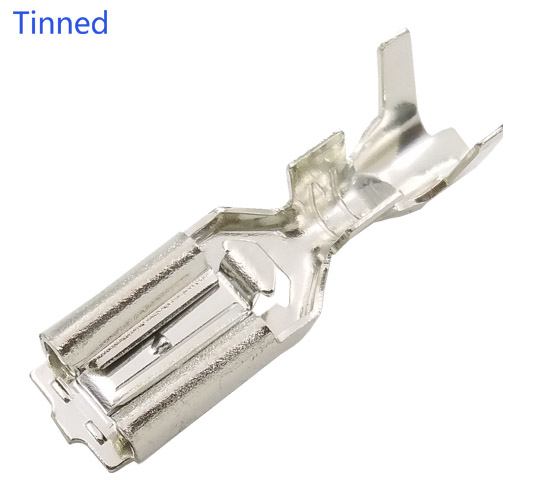

| LS4800502 | 0.5 | Brass | Tinned | 22-18 | 0.3 | 7K | UL |
| LS4800801-M | 0.8 | Brass | Unplated | 2X20 | 0.3 | 7K | - |
| LS4800801-S1 | 0.8 | Brass | Unplated | 24-22 | 0.3 | 7K | - |
| LS4800802 | 0.8 | Brass | Tinned | 22-18 | 0.3 | 7K | UL |
| LS4800802-M | 0.8 | Brass | Tinned | 2X20 | 0.3 | 7K | - |
