Series No.：LK187
Terminal Type：Receptacle
Terminal Orientation：Straight

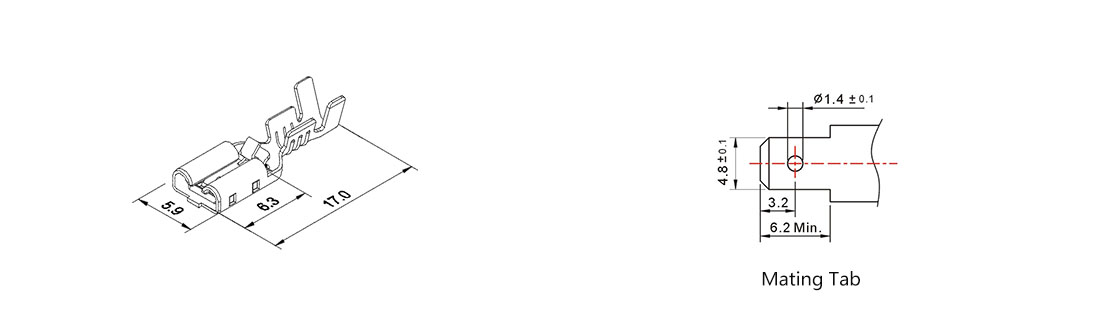

Mating Tab width：2.8mm【.110in】
Your are here:Home > Products > Terminal & Connector > Quick Connect Terminals > 187 Series > LK187
INQUIRE NOW
| Part NO. |
Mating Tab Thickness |
Material | Finish | Wire Range | Thickness |
Packaging Quantity (Reel) |
Certified |

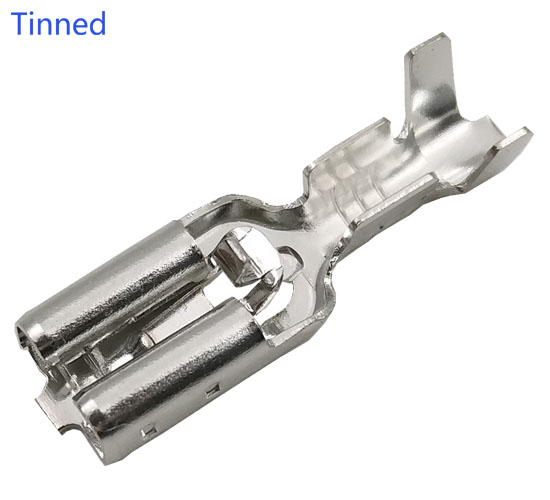

| LK1870802 | 0.8 | brass | tin-plated | 20-18 | 0.35 | 8K | CQC 、CB |
| LK1870502 | 0.5 | brass | tin-plated | 20-18 | 0.35 | 8K | CQC 、CB |
| LK1870502-S | 0.5 | brass | tin-plated | 22-18 | 0.35 | 8K | |
| LK1870802-S | 0.8 | brass | tin-plated | 22-18 | 0.35 | 8K | |

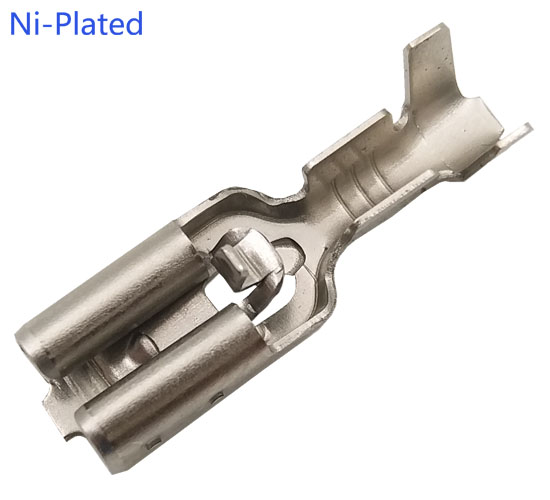

| LK1870804 | 0.8 | brass | Ni-plated | 22-18 | 0.35 | 8K |
