Series No.：SK480
Terminal Type：Receptacle
Terminal Orientation：Straigh

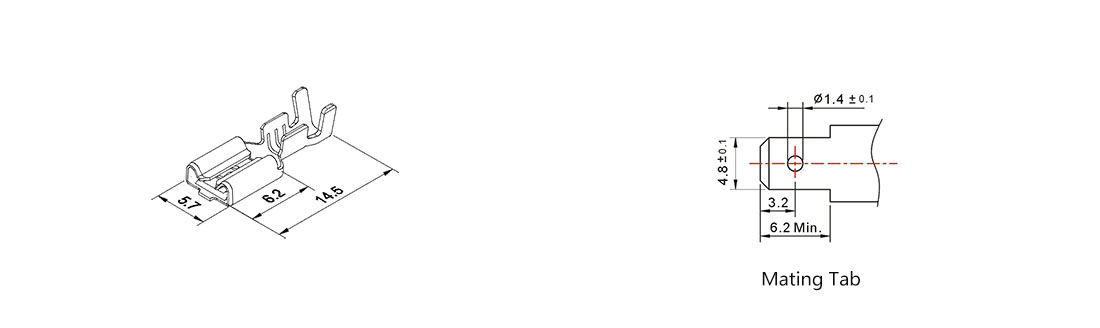

Mating Tab width：4.8mm【.187in】
Your are here:Home > Products > Terminal & Connector > Quick Connect Terminals > 187 Series > SK480
INQUIRE NOW
| Part NO. |
Mating Tab Thickness |
Material | Finish | Wire Range | Thickness |
Packaging Quantity (Reel) |
Certified |

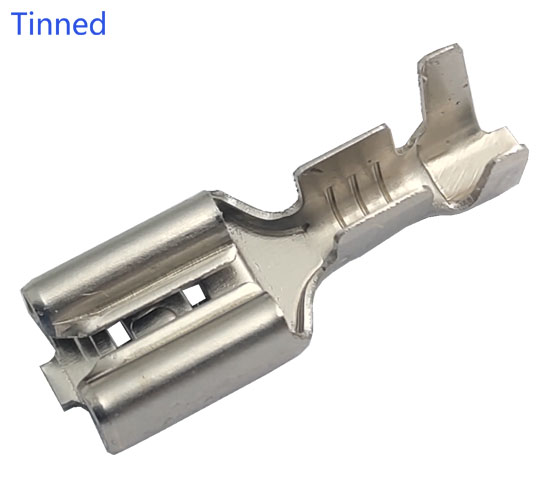

| SK4800802 | 0.8 | brass | tin-plated | 18-16 | 0.3 | 7K | CQC & CB |
| SK4800502 | 0.5 | brass | tin-plated | 18-16 | 0.3 | 7K | CQC & CB |
| SK4800802-S | 0.8 | brass | tin-plated | 24-20 | 0.3 | 7K | |
| SK4800502-S | 0.5 | brass | tin-plated | 24-20 | 0.3 | 7K | |

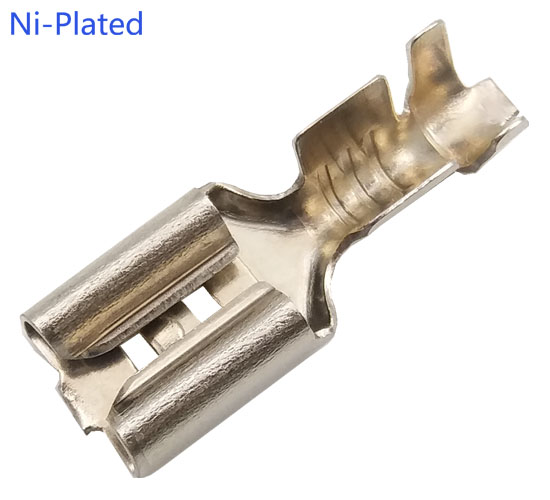

| SK4800809 | 0.8 | carbon steel | Ni-plated | 18-16 | 0.3 | 7K | CQC & CB |
| SK4800509 | 0.5 | carbon steel | Ni-plated | 18-16 | 0.3 | 7K | CQC & CB |
| SK4800809-S | 0.8 | carbon steel | Ni-plated | 24-20 | 0.3 | 7K | CQC & CB |
| SK4800509-S | 0.5 | carbon steel | Ni-plated | 24-20 | 0.3 | 7K |
