Series No.： ST187
Terminal Type： Receptacle
Terminal Orientation： Straight

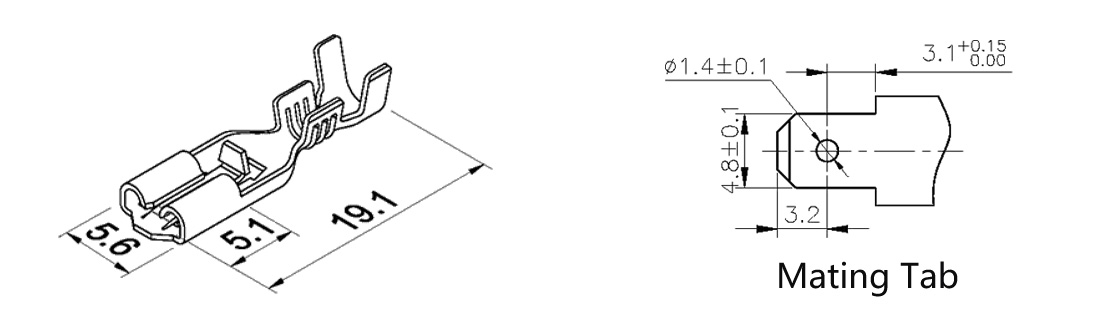

Mating Tab width： 4.8mm[.187in]
Your are here:Home > Products > Terminal & Connector > Quick Connect Terminals > 187 Series > LS187
Series No.： ST187
Terminal Type： Receptacle
Terminal Orientation： Straight
Mating Tab width： 4.8mm[.187in]
INQUIRE NOW
| Part NO. |
Mating Tab Thickness (mm) |
Material | Finish |
Wire Range (AWG) |
Thickness (mm) |
Packaging Quantity (Reel) |
Certified |
| LS1870402 | 0.4 | Brass | Tinned | 22-18 | 0.3 | 7K | - |
| LS1870502 | 0.5 | Brass | Tinned | 22-18 | 0.3 | 7K | UL/CQC |
| LS1870502-M | 0.5 | Brass | Tinned | 2X18 | 0.3 | 5K | - |
| LS1870502-S | 0.5 | Brass | Tinned | 24-20 | 0.3 | 7K | - |
| LS1870504 | 0.5 | Brass | Ni-Plated | 22-18 | 0.3 | 7K | - |
| LS1870504-M | 0.5 | Brass | Ni-Plated | 2X18 | 0.3 | 5K | - |
| LS1870504-S | 0.5 | Brass | Ni-Plated | 24-20 | 0.3 | 7K | - |
| LS1870505 | 0.5 | Stainless Steel | Unplated | 22-18 | 0.3 | 7K | - |
| LS1870802 | 0.8 | Brass | Tinned | 22-18 | 0.3 | 7K | UL/CQC |
| LS1870802-M | 0.8 | Brass | Tinned | 2X18 | 0.3 | 5K | - |
| LS1870804 | 0.8 | Brass | Ni-Plated | 22-18 | 0.3 | 7K | - |
| LS1870804-F | 0.8 | Brass | Ni-Plated | 22-18 | 0.3 | 7K | - |
