Series No.： SC187
Terminal Type： Receptacle
Terminal Orientation： Straight
Mating Tab width： 4.8mm[.187in]
Your are here:Home > Products > Terminal & Connector > Quick Connect Terminals > 187 Series > SC187
Series No.： SC187
Terminal Type： Receptacle
Terminal Orientation： Straight
Mating Tab width： 4.8mm[.187in]
INQUIRE NOW
| Part NO. |
Mating Tab Thickness (mm) |
Material | Finish |
Wire Range (AWG) |
Thickness (mm) |
Packaging Quantity (Reel) |
Certified |
| SC1870801 | 0.8 | Brass | Unplated | 18-16 | 0.4 | 7K | - |

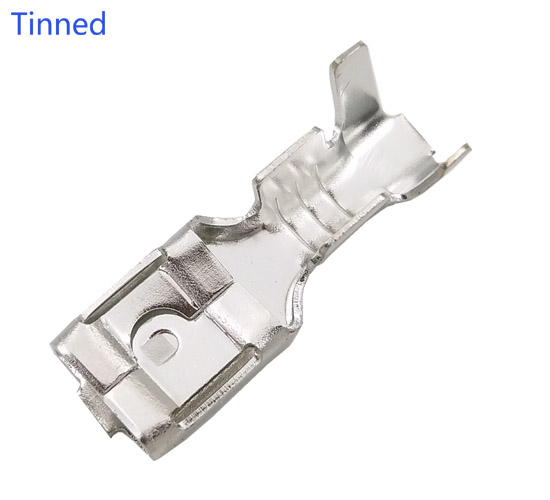

| SC1870802 | 0.8 | Brass | Tinned | 18-16 | 0.4 | 7K | - |

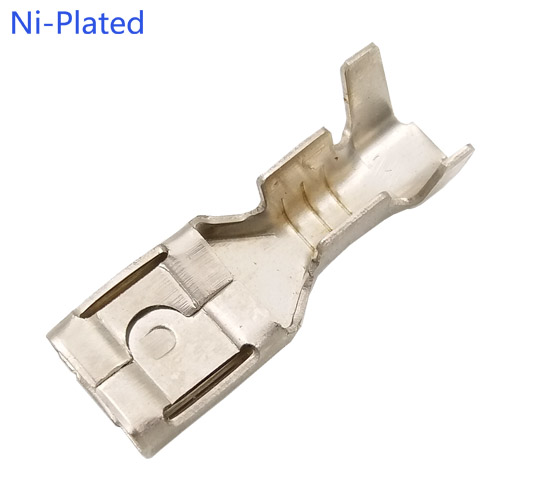

| SC1870804 | 0.8 | Brass | Ni-Plated | 18-16 | 0.4 | 7K | - |
