Series NO.：TT187
Terminal Type:Tab Crimp
Terminal Orientation: Straight

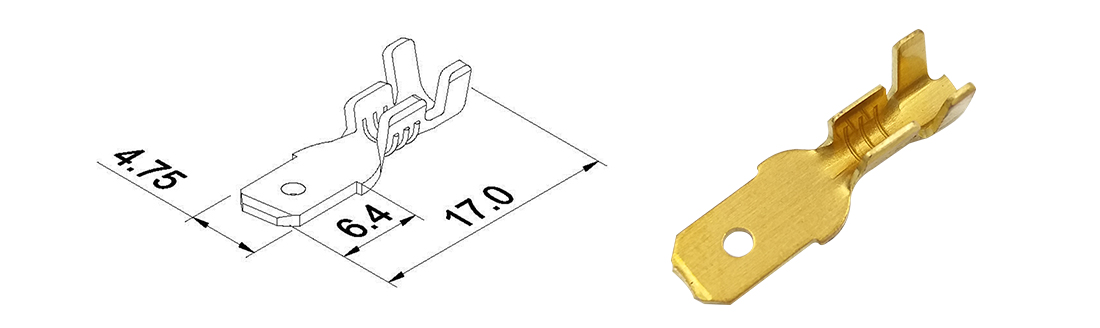

Mating Tab width：4.8mm【.187in】
Your are here:Home > Products > Terminal & Connector > Quick Connect Terminals > 187 Series > TT187
Series NO.：TT187
Terminal Type:Tab Crimp
Terminal Orientation: Straight
Mating Tab width：4.8mm【.187in】
INQUIRE NOW
| Part NO. | Mating Tab Thickness (mm) | Material | Finish | Wire Range | Thickness (mm) | Packaging Quantity (Reel) | Certified |

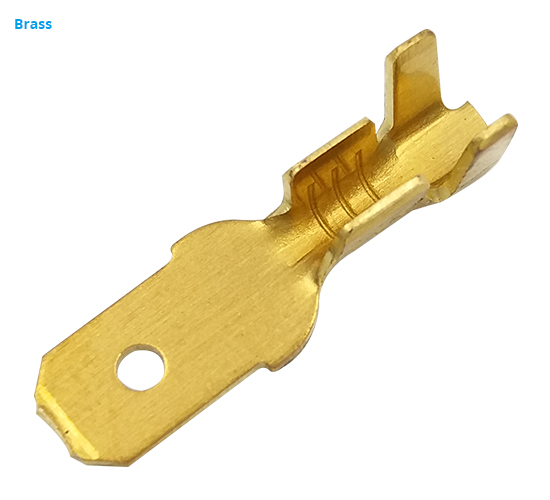

| TT1870501 | 0.5 | Brass | Unplated | 20-18 | 0.5 | 7K | - |

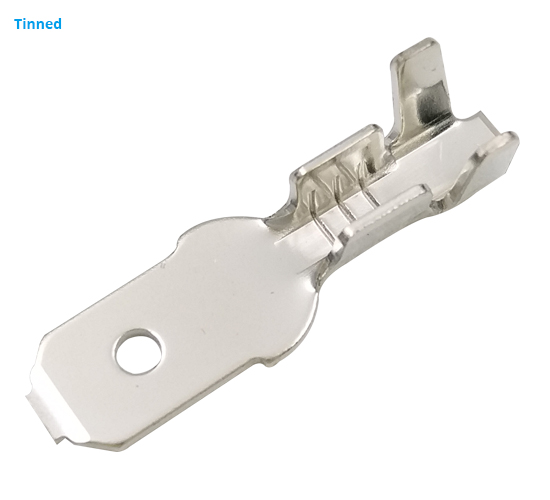

| TT1870502 | 0.5 | Brass | Tinned | 20-18 | 0.5 | 7K | - |
| TT1870502-L | 0.5 | Brass | Tinned | 18-16 | 0.5 | 7K | - |
| TT1870502-S | 0.5 | Brass | Tinned | 24-20 | 0.5 | 7K | - |

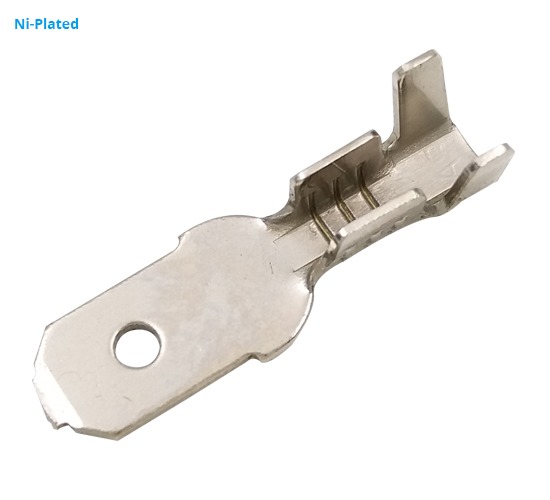

| TT1870503 | 0.5 | Steel | Ni-Plated | 20-18 | 0.5 | 7K | - |

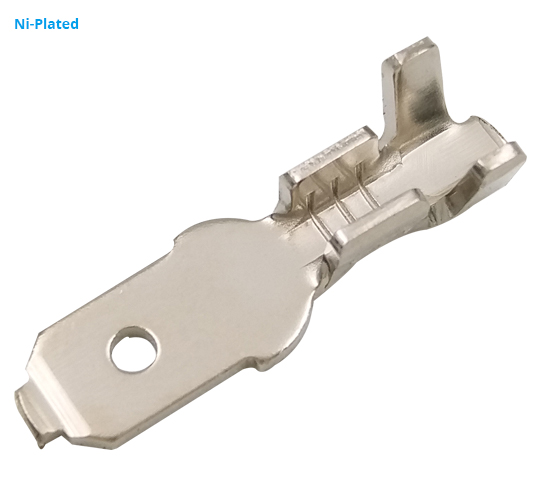

| TT1870504 | 0.5 | Brass | Ni-Plated | 20-18 | 0.5 | 7K | - |
| TT1870801 | 0.8 | Brass | Unplated | 20-18 | 0.8 | 7K | - |
| TT1870802 | 0.8 | Brass | Tinned | 20-18 | 0.8 | 7K | - |
| TT1870803 | 0.8 | Steel | Ni-Plated | 20-18 | 0.8 | 7K | - |
| TT1870804 | 0.8 | Brass | Ni-Plated | 20-18 | 0.8 | 7K | - |
