Series No. : FT250
Terminal Type: Receptacle
Terminal Orientation: Flag

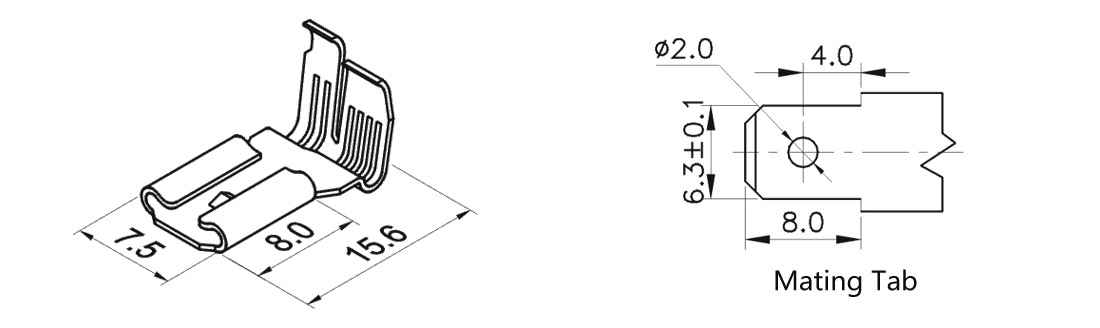

Mating Tab width: 6.3mm[.250in]
Your are here:Home > Products > Terminal & Connector > Quick Connect Terminals > 250 Series > FT250
Series No. : FT250
Terminal Type: Receptacle
Terminal Orientation: Flag
Mating Tab width: 6.3mm[.250in]
INQUIRE NOW
| Part NO. |
Mating Tab Thickness (mm) |
Material | Finish |
Wire Range (AWG) |
Thickness (mm) |
Packaging Quantity (Reel) |
Certified |
| FT2500801-S | 0.8 | Brass | Unplated | 22-18 | 0.4 | 6K | - |
| FT2500802 | 0.8 | Brass | Tinned | 18-16 | 0.4 | 4K | - |
| FT2500802-A-C | 0.8 | Brass | Tinned | 18-16 | 0.4 | 4K | - |
| FT2500802-F | 0.8 | Brass | Tinned | 18-16 | 0.4 | 4K | - |
| FT2500802-S | 0.8 | Brass | Tinned | 22-18 | 0.4 | 6K | - |
| FT2500803 | 0.8 | Steel | Ni-Plated | 18-16 | 0.4 | 4K | UL/CQC |
| FT2500803-A | 0.8 | Steel | Ni-Plated | 18-16 | 0.4 | 4K | - |
| FT2500803-A1 | 0.8 | Steel | Ni-Plated | 18-16 | 0.4 | 4K | - |
| FT2500803-S | 0.8 | Steel | Ni-Plated | 22-18 | 0.4 | 6K | - |
| FT2500803-S-A | 0.8 | Steel | Ni-Plated | 22-18 | 0.4 | 6K | - |
| FT2500804 | 0.8 | Brass | Ni-Plated | 18-16 | 0.4 | 4K | - |
| FT2500809 | 0.8 | Carbon steel | Ni-Plated | 18-16 | 0.4 | 4K | - |
| FT2500809-A1 | 0.8 | Carbon steel | Ni-Plated | 18-16 | 0.4 | 4K | - |
