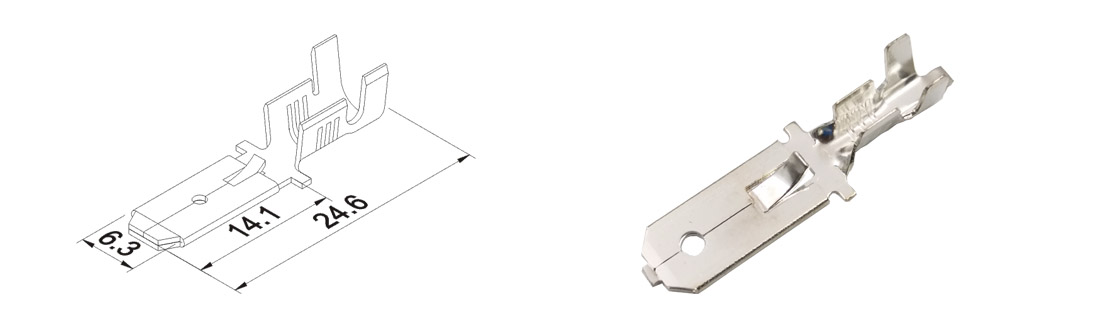

Series No.： TL251
Terminal Type： Tab Crimp
Terminal Orientation： Straight
Mating Tab width： 6.3mm[.250in]
Your are here:Home > Products > Terminal & Connector > Quick Connect Terminals > 250 Series > TL251
Series No.： TL251
Terminal Type： Tab Crimp
Terminal Orientation： Straight
Mating Tab width： 6.3mm[.250in]
INQUIRE NOW
| Part NO. |
Mating Tab Thickness (mm) |
Material | Finish |
Wire Range (AWG) |
Thickness (mm) |
Packaging Quantity (Reel) |
Certified |
| TL2510801 | 0.8 | Brass | Unplated | 20-16 | 0.4 | 4K | - |

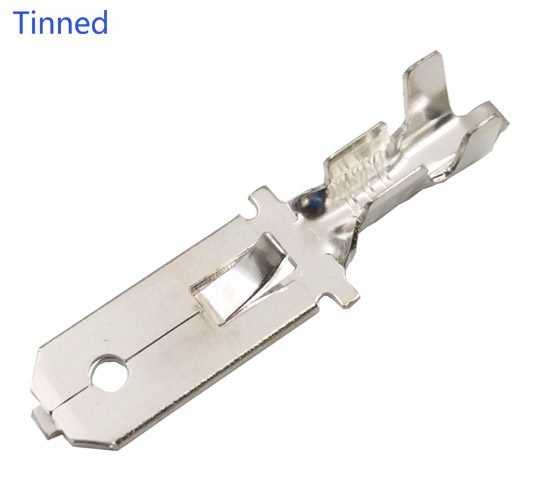

| TL2510802 | 0.8 | Brass | Tinned | 20-16 | 0.4 | 4K | - |
| TL2510802-S | 0.8 | Brass | Tinned | 24-22 | 0.4 | 4K | - |
