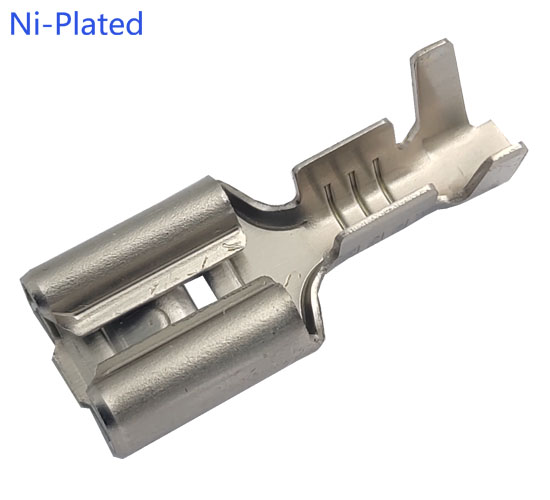

Series No.：SK250
Terminal Type：Receptacle
Terminal Orientation：Straight

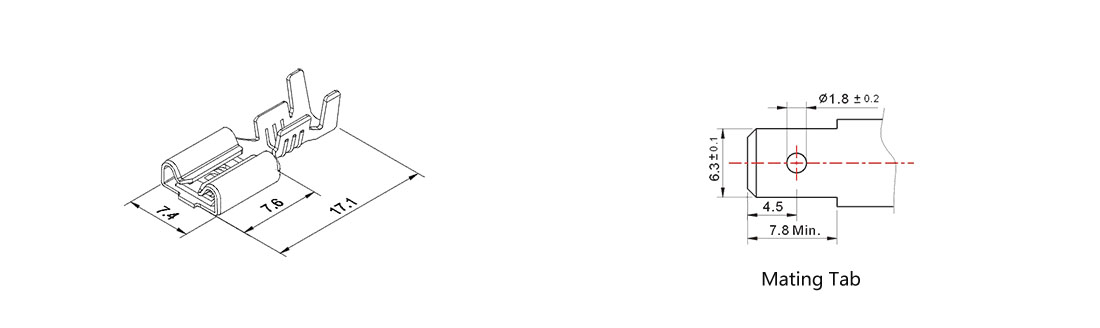

Mating Tab width：6.3mm【.250in】
Your are here:Home > Products > Terminal & Connector > Quick Connect Terminals > 250 Series > SK250
INQUIRE NOW
| Part NO. |
Mating Tab Thickness |
Material | Finish | Wire Range | Thickness |
Packaging Quantity (Reel) |
Certified |
| SK2500809 | 0.8 | Carbon Steel | Ni-plated | 18-16 | 0.4 | 5K | CQC & CB |
| SK2500809-S | 0.8 | Carbon Steel | Ni-plated | 20-18 | 0.4 | 5K | CQC & CB |
| SK2500809-M | 0.8 | Carbon Steel | Ni-plated |
18+18 16+16 |
0.4 | 5K | CQC & CB |
| SK2500802 | 0.8 | brass | tin-plated | 18-16 | 0.39 | 5K | CQC & CB |
| SK2500802-S | 0.8 | brass | tin-plated | 20-18 | 0.4 | 5K |
