Series No.： SL630
Terminal Type： Receptacle
Terminal Orientation： Straight

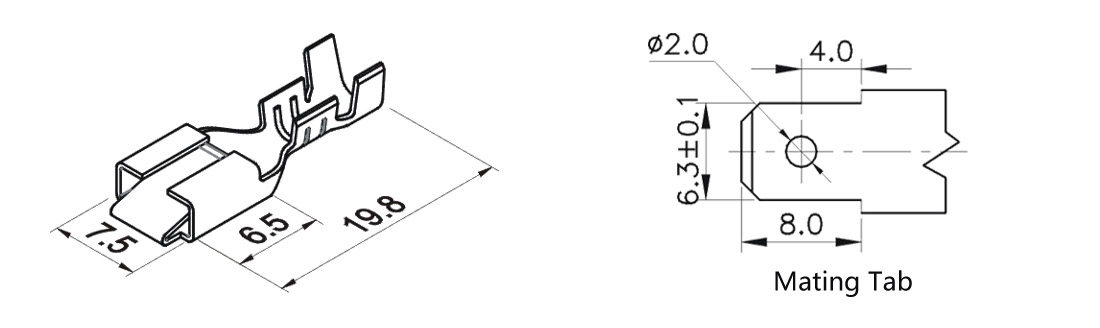

Mating Tab width： 6.3mm[.250in]
Your are here:Home > Products > Terminal & Connector > Quick Connect Terminals > 250 Series > SL630
Series No.： SL630
Terminal Type： Receptacle
Terminal Orientation： Straight
Mating Tab width： 6.3mm[.250in]
INQUIRE NOW
| Part NO. |
Mating Tab Thickness (mm) |

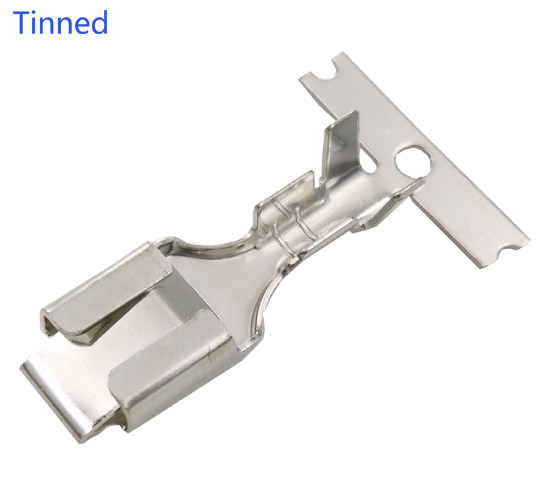

Material | Finish |
Wire Range (AWG) |
Thickness (mm) |
Packaging Quantity (Reel) |
Certified |
| SL6300802 | 0.8 | Brass | Tinned | 18-14 | 0.4 | 2K | - |
| SL6300807 | 0.8 | Phosphor Bronze | Tinned | 18-14 | 0.4 | 2K | - |
| SL6300807-S | 0.8 | Phosphor Bronze | Tinned | 22-20 | 0.4 | 2.5K | - |
