Series No. : LF250
Terminal Type: Receptacle
Terminal Orientation: Flag

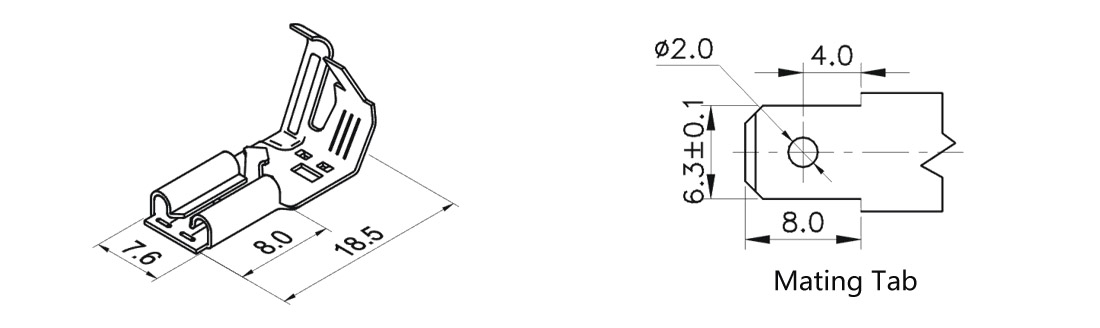

Mating Tab width: 6.3mm[.250in]
Your are here:Home > Products > Terminal & Connector > Quick Connect Terminals > 250 Series > LF250
Series No. : LF250
Terminal Type: Receptacle
Terminal Orientation: Flag
Mating Tab width: 6.3mm[.250in]
INQUIRE NOW
| Part NO. |
Mating Tab Thickness (mm) |
Material | Finish |
Wire Range (AWG) |
Thickness (mm) |
Packaging Quantity (Reel) |
Certified |

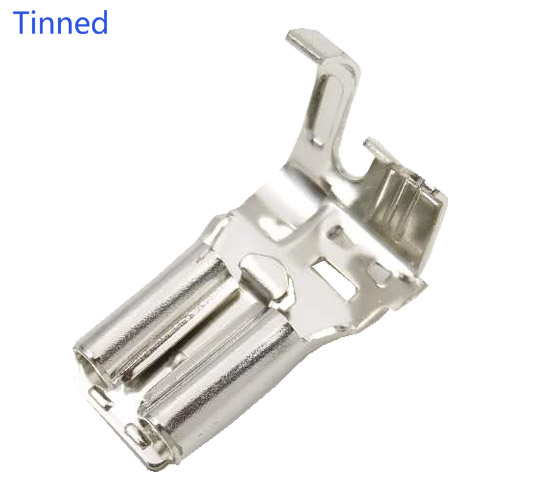

| LF2500802 | 0.8 | Brass | Tinned | 18-16 | 0.4 | 3K | UL |
| LF2500804 | 0.8 | Brass | Ni-Plated | 18-16 | 0.4 | 3K | - |
