Series No. : NF250
Terminal Type: Receptacle
Terminal Orientation: Flag

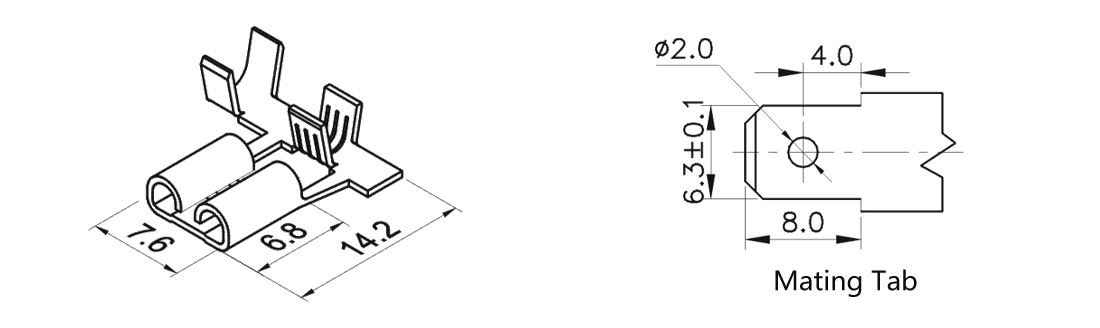

Mating Tab width: 6.3mm[.250in]
Your are here:Home > Products > Terminal & Connector > Quick Connect Terminals > 250 Series > NF250
Series No. : NF250
Terminal Type: Receptacle
Terminal Orientation: Flag
Mating Tab width: 6.3mm[.250in]
INQUIRE NOW
| Part NO. |
Mating Tab Thickness (mm) |
Material | Finish |
Wire Range (AWG) |
Thickness (mm) |
Packaging Quantity (Reel) |
Certified |

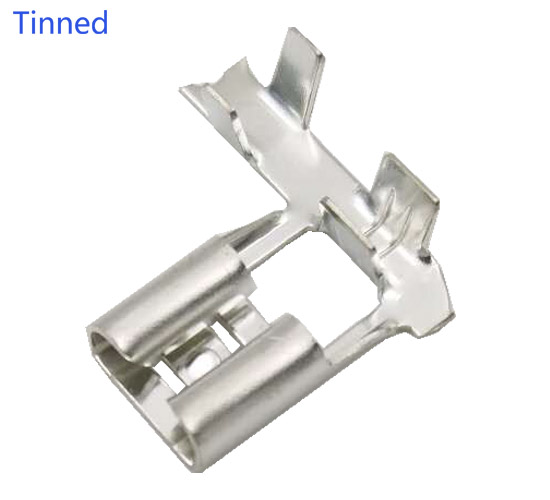

| NF2500802 | 0.8 | Brass | Tinned | 18-16 | 0.4 | 3K | UL |
| NF2500802-72 | 0.8 | Brass | Tinned | 18-16 | 0.4 | 3K | - |
| NF2500802-A | 0.8 | Brass | Tinned | 18-16 | 0.4 | 3K | - |
| NF2500802-S | 0.8 | Brass | Tinned | 22-18 | 0.4 | 4K | - |

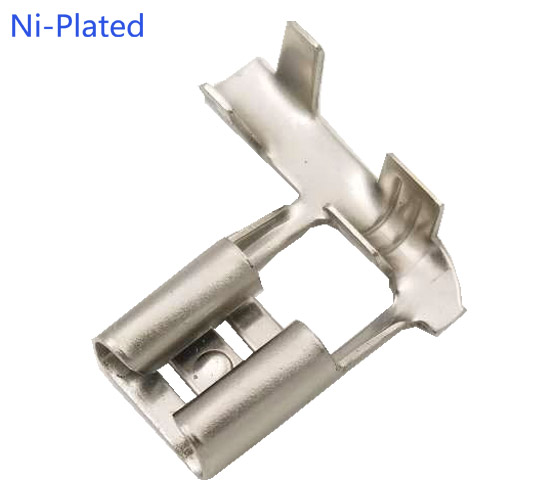

| NF2500803 | 0.8 | Steel | Ni-Plated | 18-16 | 0.4 | 3K | CQC |
| NF2500803-S | 0.8 | Steel | Ni-Plated | 22-18 | 0.4 | 4K | - |
| NF2500804 | 0.8 | Brass | Ni-Plated | 18-16 | 0.4 | 3K | - |
| NF2500804-F | 0.8 | Brass | Ni-Plated | 18-16 | 0.4 | 3K | - |
| NF2500809 | 0.8 | Carbon steel | Ni-Plated | 18-16 | 0.4 | 3K | - |
| NF2500810 | 0.8 | Carbon steel | Tinned | 18-16 | 0.4 | 3K | - |
| NF2500811 | 0.8 | Steel | Tinned | 18-16 | 0.4 | 3K | - |
| NF2500802-S-A | 0.8 | Brass | Tinned | 22-18 | 0.4 | 4K | - |
| NF2500809-A | 0.8 | Carbon steel | Ni-Plated | 18-16 | 0.4 | 3K | - |
| NF2510802 | 0.8 | Brass | Tinned | 18-16 | 0.4 | 3K | - |
| NF2520802 | 0.8 | Brass | Tinned | 18-16 | 0.4 | 3K | - |
| NF2520804 | 0.8 | Brass | Ni-Plated | 18-16 | 0.4 | 3K | - |
