Series NO.：PG250
Terminal Type: Tab & Receptacle
Terminal Orientation: Piggyback
Mating Tab width：6.3mm【.250in】
Your are here:Home > Products > Terminal & Connector > Quick Connect Terminals > 250 Series > PG250
Series NO.：PG250
Terminal Type: Tab & Receptacle
Terminal Orientation: Piggyback
Mating Tab width：6.3mm【.250in】
INQUIRE NOW
| Part NO. |
Mating Tab Thickness (mm) |
Material | Finish | Wire Range |
Thickness (mm) |
Packaging Quantity (Reel) |
Certified |
| PG2500502 | 0.5 | Brass | Tinned | 22-18 | 0.4 | 1.5K | - |
| PG2500503 | 0.5 | Steel | Ni-Plated | 22-18 | 0.4 | 1.5K | - |

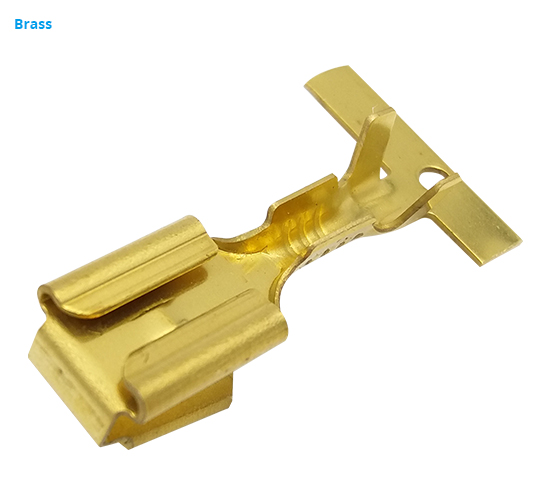

| PG2500801 | 0.8 | Brass | Unplated | 22-18 | 0.4 | 1.5K | - |

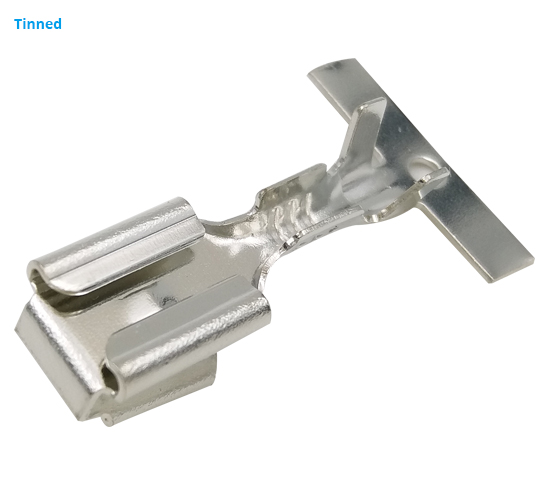

| PG2500802 | 0.8 | Brass | Tinned | 22-18 | 0.4 | 1.5K | - |
| PG2500802-L | 0.8 | Brass | Tinned | 18-16 | 0.4 | 1.5K | - |
| PG2500802-XL | 0.8 | Brass | Tinned | 2*18 | 0.4 | 1.5K | - |
| PG2500803 | 0.8 | Steel | Ni-Plated | 22-18 | 0.4 | 1.5K | - |

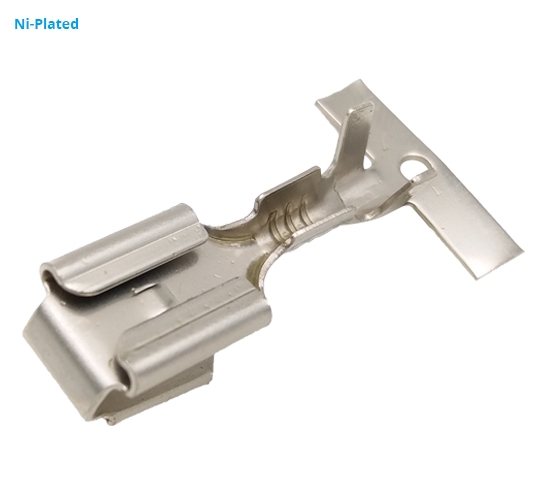

| PG2500804 | 0.8 | Brass | Ni-Plated | 22-18 | 0.4 | 1.5K | - |
| PG2500804-L | 0.8 | Brass | Ni-Plated | 18-16 | 0.4 | 1.5K | - |

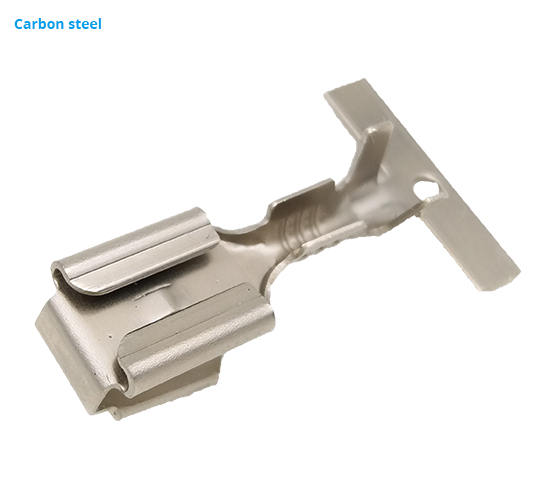

| PG2500809 | 0.8 | Carbon steel | Ni-Plated | 22-18 | 0.4 | 1.5K | - |
