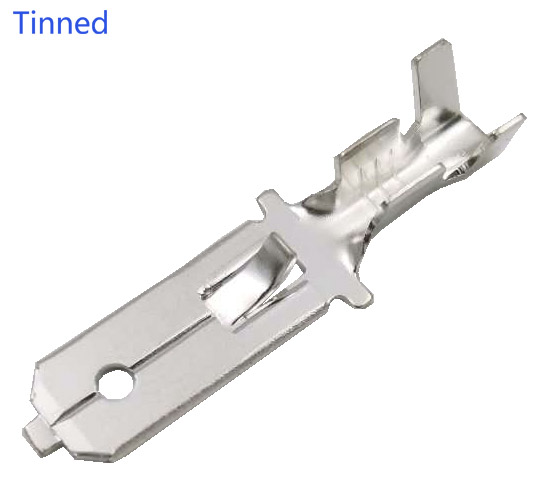

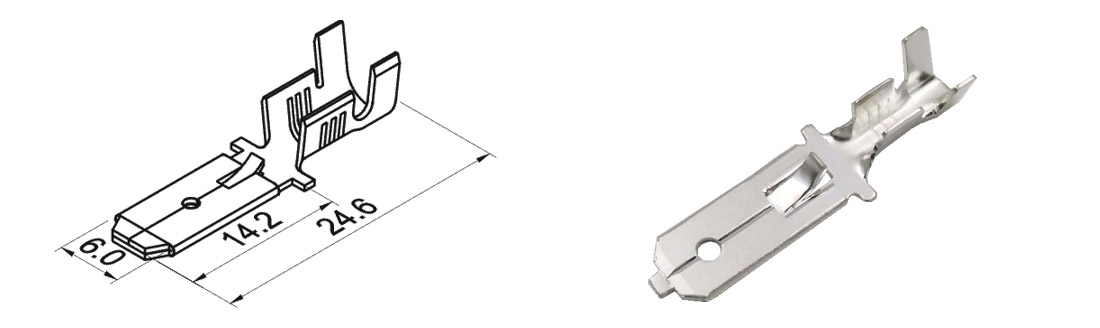

Series No. : TL250
Terminal Type: Tab Crimp
Terminal Orientation: Straight
Mating Tab width: 6.3mm[.250in]
Your are here:Home > Products > Terminal & Connector > Quick Connect Terminals > 250 Series > TL250
Series No. : TL250
Terminal Type: Tab Crimp
Terminal Orientation: Straight
Mating Tab width: 6.3mm[.250in]
INQUIRE NOW
| Part NO. |
Mating Tab Thickness (mm) |
Material | Finish |
Wire Range (AWG) |
Thickness (mm) |
Packaging Quantity (Reel) |
Certified |
| TL2500801 | 0.8 | Brass | Unplated | 20-16 | 0.4 | 4K | - |
| TL2500802 | 0.8 | Brass | Tinned | 20-16 | 0.4 | 4K | - |
| TL2500802-L | 0.8 | Brass | Tinned | 18-14 | 0.4 | 4K | - |
| TL2500802-S | 0.8 | Brass | Tinned | 24-22 | 0.4 | 4K | - |
