Series No. : TT250
Terminal Type: Tab Crimp
Terminal Orientation: Straight
Mating Tab width: 6.3mm[.250in]
Your are here:Home > Products > Terminal & Connector > Quick Connect Terminals > 250 Series > TT250
Series No. : TT250
Terminal Type: Tab Crimp
Terminal Orientation: Straight
Mating Tab width: 6.3mm[.250in]
INQUIRE NOW
| Part NO. |
Mating Tab Thickness (mm) |
Material | Finish |
Wire Range (AWG) |
Thickness (mm) |
Packaging Quantity (Reel) |
Certified |
| TT2500502 | 0.5 | Brass | Tinned | 20-18 | 0.5 | 5K | - |

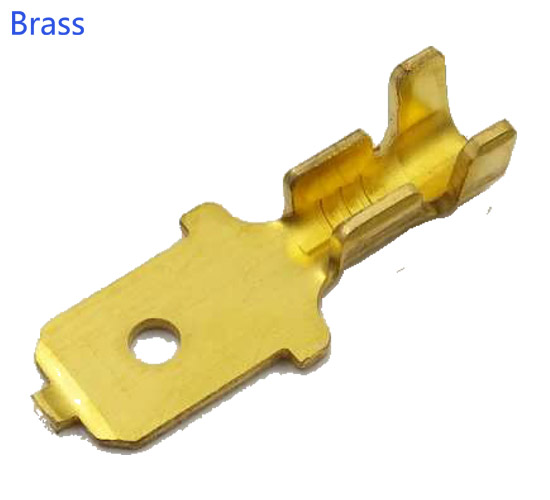

| TT2500801 | 0.8 | Brass | Unplated | 20-18 | 0.8 | 5K | - |

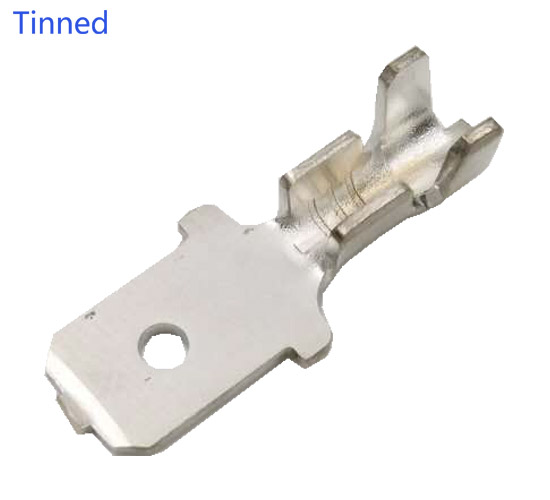

| TT2500802 | 0.8 | Brass | Tinned | 20-18 | 0.8 | 5K | - |
| TT2500802-L | 0.8 | Brass | Tinned | 18-14 | 0.8 | 5K | - |
| TT2500803-L | 0.8 | Steel | Ni-Plated | 18-14 | 0.8 | 5K | - |

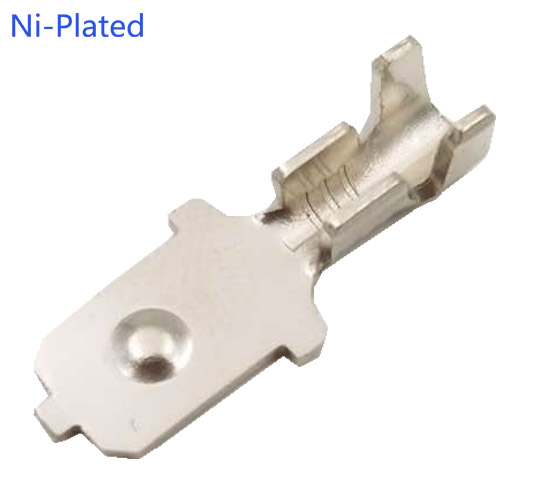

| TT2500804 | 0.8 | Brass | Ni-Plated | 20-18 | 0.8 | 5K | - |
